RL841XGWV – AX3BF

FTTR Master，10G PON;1*GPON OLT+1*2.5GE+3*GE+FXS+USB,WIFI6,AX3000

RL841XGWV – AX3BF is an optical gateway launched by our company for the needs of FTTR and POL application. The functions and performances meet IEEE802.3ah, ITU G.984 international standards. It supports main stream OLT such as HUAWEI/ZTE/Nokia etc. And also, it can fully satisfy the user’s need of high speed broadband with the features of high reliability, good QoS, manageable, flexible networking, easily capacity expansion.
The uplink optical port is a XGPON interface that connects to the XGPON OLT.

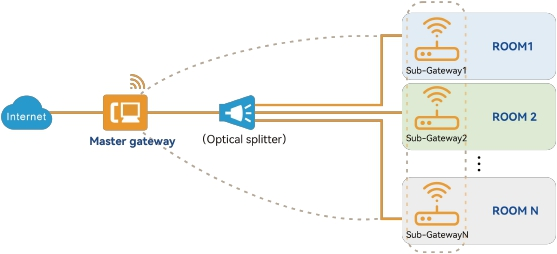

The Downlink optical port is a GPON interface that connects to the GPON slave gateways. supports up to 16 slave gateways. suitable for home users.
It has advanced Wi – Fi6 function, Supports WIFI6 3000Mbps with IEEE 802.11a/b/g/n/ac/ax.

1. Hardware specification

1.1 Hardware parameters

CPU	Airoha AN7581CT,Built in 4-core Arm A53 and integrated with 4 NP processors
Wi-Fi Base-band	MT7916AN
Wi-Fi RF	MT7976DN
Voice Chip	PEF32001
RAM	512MB memory ( default )
ROM	256MB Flash ( default )

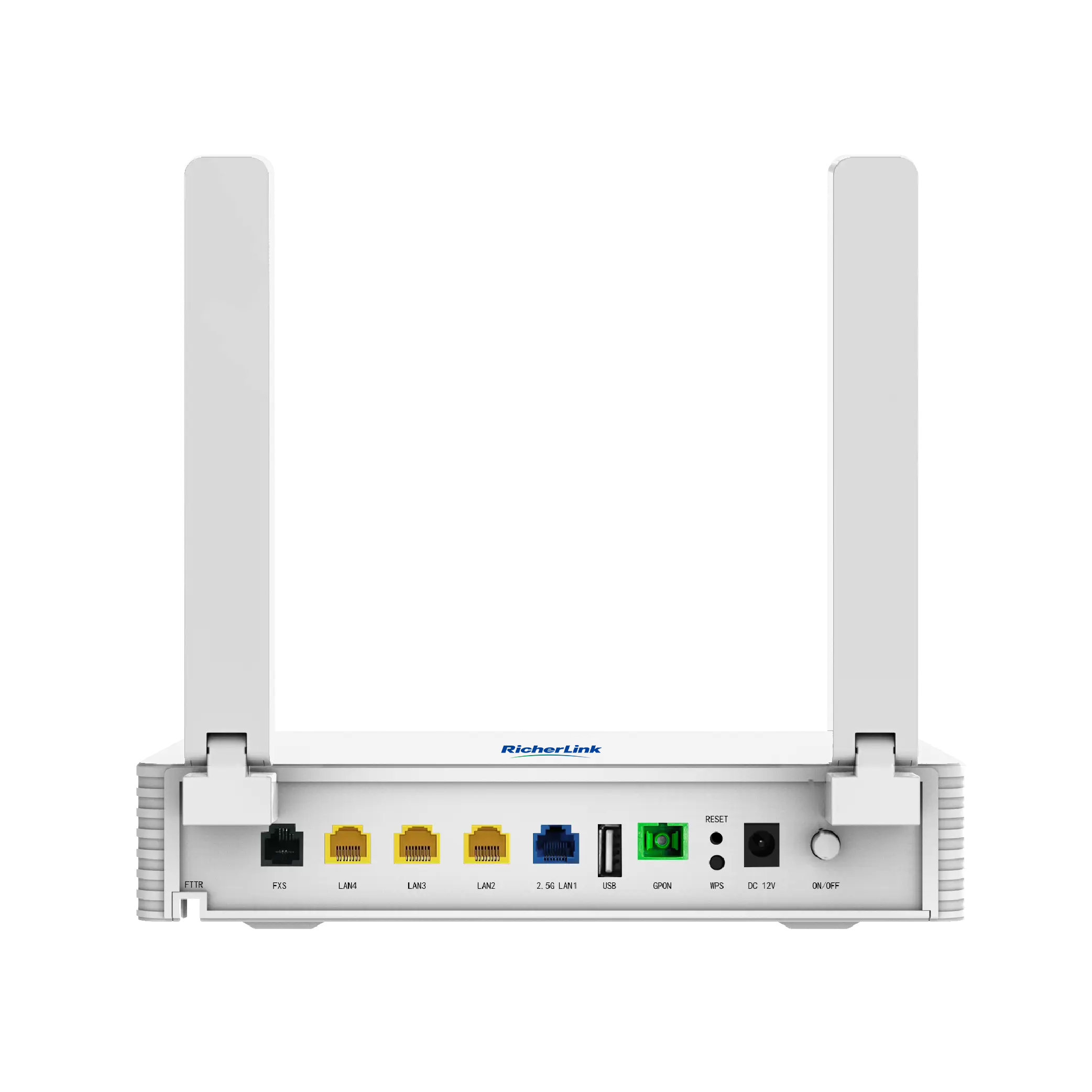

1.2 Interface

Interface	Description
ON/OFF	Power ON/OFF
DC 12V	Power interface, DC adaptor interface / DC12V
RST	Press reset key and keep 5 seconds to make the device restart and recover from the factory default Settings.
MESH	Easy mesh button , press ≥ 3s , enable the easy mesh function.
Eth Port	4pcs RJ-45 LAN port , 1pcs 2.5Gbps and 3pcs 10/100/1000Mbps
UL-PON	SC/UPC or SC/APC type optical interface, GPON Optical Interface, uplink to OLT
DL-PON	SC/UPC or SC/APC type optical interface,GPON Optical Interface, downlink to ONU, Plug and Play
FXS	One RJ11 interface for voice service
USB	One USB 2.0

1.3 Indicators of device

Indicators	Status	Description
POWER	On	Power supply normally
POWER	Off	ONU no power supply
UL-PON	On	ONU link is active
	Flash	ONU is linking
	Off	ONU receiving power rate lower than optical receive sensitivity
DL-PON	On	Downlink ONU is active
	Flash	Downlink ONU is linking
	Off	No downlink ONU connected
LOS	On	No optical signal
	Flash	Receiving power lower than optical receiver sensitivity
	Off	Received optical signal normal
Internet	Off	Uplink internet but no data
Internet	On	Uplink internet is normal
LAN1 ~ LAN4	On	Linked, but no data transmitting
	Flash	Linked, but no data transmitting
	Off	no power supply or disconnected
WLAN(2.4G and 5G) &MESH	Green Off	Wi-Fi off
	Green On	Wi-Fi on, but no data transmitting
	Green Flash	Wi-Fi on and with data transmission
	Blue Off	Mesh function is disabled or Mesh networking is successful for more than 10 seconds.
	Flash Blue	Mesh networking is in progress.
	Blue On	Mesh networking is successful, the blue indicator will turn off after 10s.
USB	On	USB storage is connected
USB	Off	USB storage is disconnected
FXS	On	Registered to the SIP server and can be used
	Off	No registered
	Flash	Off hook, ring or calling status

2. Software Specification

Network Services	Ethernet Uplink Easy mesh Networking Parental Control SIP/H.248
Layer 3 Features	ipv4,ipv6,ipv4/ipv6 Dual Stack Port Mapping ALG, UPnP, DDNS, DMZ NAT/NAPT Static Route/Default Route Multi-Services Integration
multicast	IPV4/IPV6 multicast
QOS	Ethernet port speed limit
Security	Firewall Anti-DOS attack MAC/IP/URL Address Filtering
OAM	OAM/OMCI/Web UI/TR069/AVASA ( optional )
Home Network	As the master FTTR Gateway, it realizes full-optical networking at home. No electromagnetic interference and low latency. Home Network Visual Management Wi-Fi Channel Optimization for home network Wi-Fi Seamless Roaming ( 802.11k/802.11v ) *

Remark*: User terminal devices need to support 802.11k/802.11v.

3. Technical specifications

3.1 Physical structure, Environment and Electrical parameter

Parameter	Nominal Value
Dimension	217mm×141mm×44mm ( WDH )
Net weight	< 0.78kg
Typical power consumption	< 24W
Power supply	12V DC ( external AC/DC adapter )
Installation style	Support Desk, wall mount or put inside of information box.
Operating Temperature	0 ℃~ 45 ℃
Operating Humidity	10% RH ~ 95% RH (non-condensing)

3.2 Interface parameter

3.2.1 GPON Uplink interface parameter

Parameter	Nominal Value
Fiber Connector	SC/UPC or SC/APC
PON Quantity	1 0 GPON
Fiber Mode	Single-mode Fiber
Wavelength	TX: 1310 ± 20nm RX: 1490 ± 10nm
PON Interface Standard	ITU-TG.984.x
PON interface receiving rate	2.488Gpbs
PON interface transmitting rate	1.244Gbps
TX Optical Power	+0.5dBm ~ +5dBm
RX receiving sensitivity	-8dBm ~ -28dBm
The length of the optical link	Max 20km

3.2.2 GPON Interface Specifications

Parameter	Nominal Value
Connector style	SC/UPC or SC/APC
Splitting ratio	1:16
PON quantity	1 (GPON)
Fiber style	Single Mode Fiber
Wavelength	TX: 1490 ± 10nm RX: 1310 ± 20nm
PON interface standard	ITU-TG.984.x
PON interface receiving rate	1.244Gbps
PON interface transmitting rate	2.488Gbps
TX Optical Power	-4dBm ~ 0dBm(because it is support 1:16 Splitting ratio only)
RX receiving sensitivity	<-27dBm(because it is support 1:16 Splitting ratio only)

3.2.3 User Interface

Quantity	Type	remark
1	RJ45 10/100/1000/2.5G BASE-T Ethernet Self negotiation	IEEE802.3bz Standard, Support direct network cable connection and automatic verification of connection network cable
3	RJ45 100/1000 Base-T Ethernet Self negotiation	IEEE802.3ab Standard, Support direct network cable connection and automatic verification of connection network cable
1	RJ11	Telephone
1	USB2.0	Storage/USB Power supply

3.3 Wi – Fi specification

Wireless Standard		5G 802.11 ax/a/n and 2.4G 802.11 b/g/n/ax
	Frequency	2.4G: 2.4~2.4835GHz 5G: 5.15~5.825GHz
	Transmission speed	2.4G: IEEE 802.11ax：2×2, Max 574Mbps
		5G: IEEE 802.11ax：3×3, Max 2402Mbps(Support 160MHz bandwidth)
	Channels	2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165

Data Modulation

11b:

DSSS: DBPSK(1Mbps), DQPSK(2Mbps), CCK(5.5/11Mbps)

11a/g:

OFDM: BPSK(6/9Mbps), QPSK(12/18Mbps),

16QAM(24/36Mbps), 64QAM(48/ 54Mbps)

11n:

MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM,

: MCSO-MCS15

11ac:

MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM

Rate Set: MCSO-MCS9

11ax:

MIMO-OFDMA: BPSK, QPSK, 16QAM, 64QAM, 256QAM,

1024QAM.

Rate Set: MCS0-MCS11

EIRP

2.4GHz:20dBm, 5GHz:23dBm

Antenna

2*External omnidirectional dual-band antenna of 5dBi（2.4G

and 5G）,1*Internal omnidirectional antenna for 5G

Ordering Information

Model	Product Descriptions
RL841XGWV – AX3BF	FTTR Master，10G PON;1GPON OLT+12.5GE+3*GE+FXS+USB,WIFI6,AX3000
