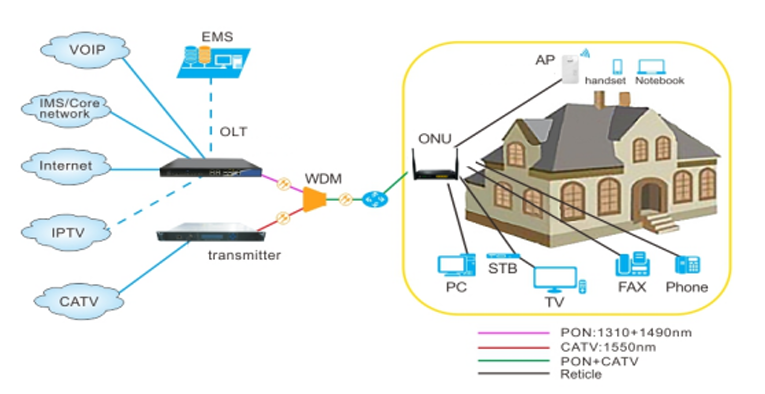

The RL802GW-AX3H terminal device is designed to meet the FTTH (Fiber to the Home) and triple-play service demands of fixed network operators or cable operators. Based on mature Gigabit GPON technology, this device offers high cost-performance. It supports multi-WAN connections in bridge or route mode, IPv4 and IPv6 protocol stacks, multicast protocols, QoS, firewall functions, Easy Mesh networking, and the TR069 management protocol. Adopting the latest 802.11ax WiFi 6 technology standard (compatible with 802.11ac/b/g/n), it supports a 3000Mbps connection rate. Features include large transmission capacity, high speed, high reliability, easy maintenance, and guaranteed QoS for diverse services. It fully complies with technical regulations such as ITU-T G.984.x.
| Port Type |
Function |
| FIBER |
Connects to the PON port via an SC-type single-mode optical fiber cable |
| LAN 1/2 |
RJ45 ports; 1×GE port and 1×2.5G port for local network connections |
| RESET Button |
Press and hold for 5 seconds to restart the device and restore factory defaults |
| POWER |
Connects to a DC 12V power adapter |
| ON/OFF Button |
Switches the device power on/off |
| Status |
Description |
| POWER Light On |
Device is powered on normally |
| POWER Light Off |
Device is not powered on |
| LOS Blink |
Received optical power is below the optical receiver sensitivity |
| LOS Light Off |
Received optical power is normal |
| NET Light On |
Internet connection is active |
| NET Light Off |
Internet WAN port is unconfigured or inactive |
| LAN 1-2 Light On |
Network port is linked (no data transmission) |
| LAN 1-2 Blink |
Network port has data transmission |
| WIFI Light On |
WiFi is enabled |
| WIFI Light Off |
WiFi is disabled or device is powered off |
| WIFI Blink |
WiFi is enabled with ongoing data transmission |
| Parameter |
Nominal Value |
| ETH Interface |
1×GE + 1×2.5GE |
| Dimensions |
215mm×200mm×36mm (W×D×H) |
| Net Weight |
0.6kg |
| Typical Power Consumption |
<24W |
| Noise |
None |
| Cooling Style |
Natural cooling |
| Power Supply |
12V DC (via external AC/DC adapter) |
| Installation Style |
Ceiling-mounted |
| Operating Temperature |
-5°C ~ 45°C |
| Parameter |
Nominal Value |
| Connector Type |
SC/UPC (Optional SC/APC) |
| PON Quantity |
1 |
| Fiber Type |
Single mode |
| Transmission Wavelength |
TX: 1310 ±20nm; RX: 1490 ±10nm |
| PON Interface Standard |
ITU-T G.984.2/G.984.3/G.988 Class B+ |
| Receive Rate |
2.488 Gbps |
| Transmit Rate |
1.244 Gbps |
| Output Optical Power |
Min: 0.5dBm; Max: +5dBm |
| Receiver Sensitivity |
≤-28dBm |
| Maximum Optical Link Length |
20 km |
| Parameter |
Nominal Value |
| Standard |
IEEE 802.11ax/ac/b/g/n |
| Max Transmission Speed |
2976 Mbps |
| 2.4GHz Speed |
574 Mbps |
| 5GHz Speed |
2402 Mbps (supports 160MHz bandwidth) |
| 2.4GHz Channels |
1-11 |
| 5GHz Channels |
36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161 |
| Modulation (11b) |
DSSS: DBPSK(1Mbps), DQPSK(2Mbps), CCK(5.5/11Mbps) |
| Modulation (11a/g) |
OFDM: BPSK(6/9Mbps), QPSK(12/18Mbps), 16QAM(24/36Mbps), 64QAM(48/54Mbps) |
| Modulation (11n/ac/ax) |
MIMO-OFDM/MIMO-OFDMA with various QAM schemes |
| FEM Support |
High-power external FEM for both 2.4G and 5G |
| Antenna |
Built-in 5×3.5dBi antennas (2.4G 2×2 MU-MIMO, 5G 3×3 MU-MIMO) |
Ordering Information
| Model |
Product Descriptions |

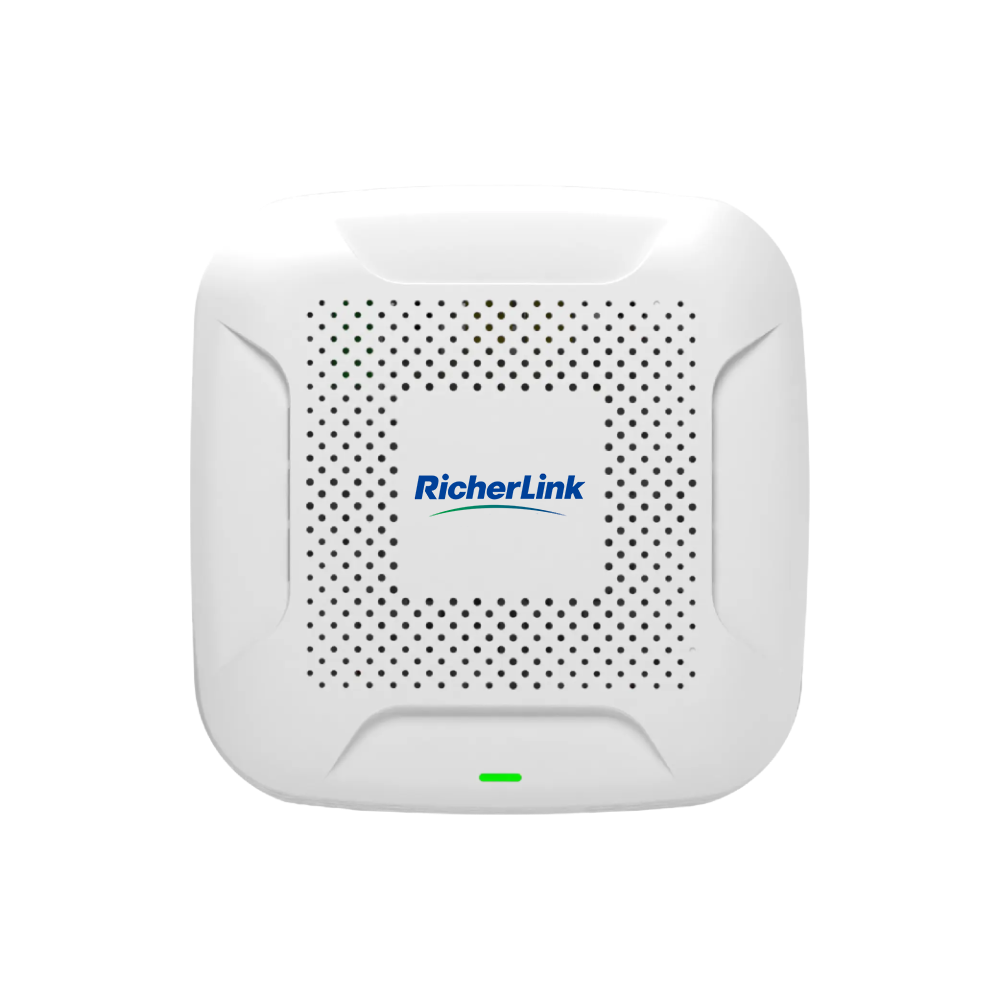

| RL802GW-AX3H |
GPON,1*2.5GE+1*GE+WIFI6,AX3000,support POF&POE |
