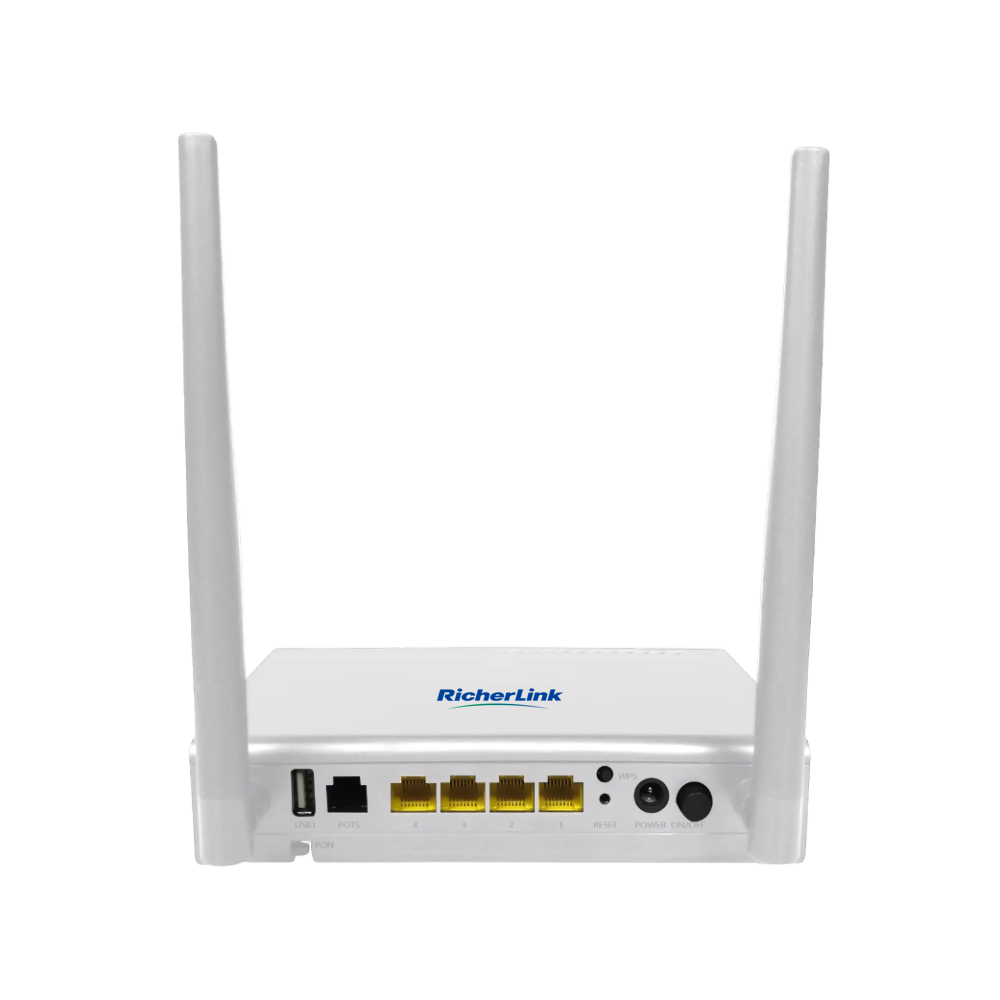

RL841XGWV-AX1B

10G PON+4*GE LAN+1POTS+1USB+WIFI6, AX1800

Recommended number of connected users	32
Optimal coverage area	150㎡
Application Scenario	General education, enterprise office, park monitoring
PON port characteristics GPON standard	G.984 standard, Class B +
EPON standard	1000BASE-PX20+ symmetric
GPON transmission rate	2.488Gbps/1.244Gbps down/up
EPON transmission rate	1.244Gbps down/up
Working wavelength	Transmit: 1310nm Receive: 1490nm
Transmission power	GPON:0.5～5dBm EPON:0～4dBm
Receiving sensitivity	GPON:<=-28dBm EPON:<=-27dBm
Photosynthetic rate	GPON:-8dBm EPON:-3dBm
transmission distance	20km
User side interface Ethernet port	4*10/100/1000M
Telephone port	1
WiFi WiFi Protocol Standards	802.11a/b/g/n/ac/ax
2.4GHz maximum rate	300Mbps
5GHz maximum rate	1500Mbps
2.4GHz antenna	5dBi
5GHz antenna	5dBi
2.4GHz maximum transmission power	20dBm±1.5dBm
5GHz maximum transmission power	20dBm±1.5dBm
2.4GHz receiving sensitivity	11b 1Mbps -92dBm; 11n MCS7 -72dBm
5GHz receiving sensitivity	11a 6Mbps -92dBm; 11n MCS7 -72dBm; 11ac MCS9 -64dBm
Button	1 Reset button; 1 WPS key; 1 power key
Indicator light	PWR,PON,LOS,NET,LAN1-LAN4,FXS,WIFI,WPS,USB1
Power supply	12V/1A
Maximum power consumption of the device	<12W
Device Management	OAM / WEB / TR069 / Telnet; GPON:OMCI/WEB/TR069 / Telnet, APP management
Equipment certification	Automatic discovery, link detection, and remote software upgrade; Automatic /MAC/SN/LOID+ Password authentication
WiFi Features	Multiple SSIDs; Supports SSID broadcast and hiding; Supports WPA-PSK nd WPA2-PSK encryption
Softwares Features	IPv4/IPv6 dual stack; NAT; DHCP client/server; PPPOE client/Transparent transmission; Static and dynamic routing
Size(LxWxH)	172mmx115mmx40mm

Ordering Information

Model	Product Descriptions
RL841XGWV-AX1B	10G PON+4*GE LAN+1POTS+1USB+WIFI6, AX1800
