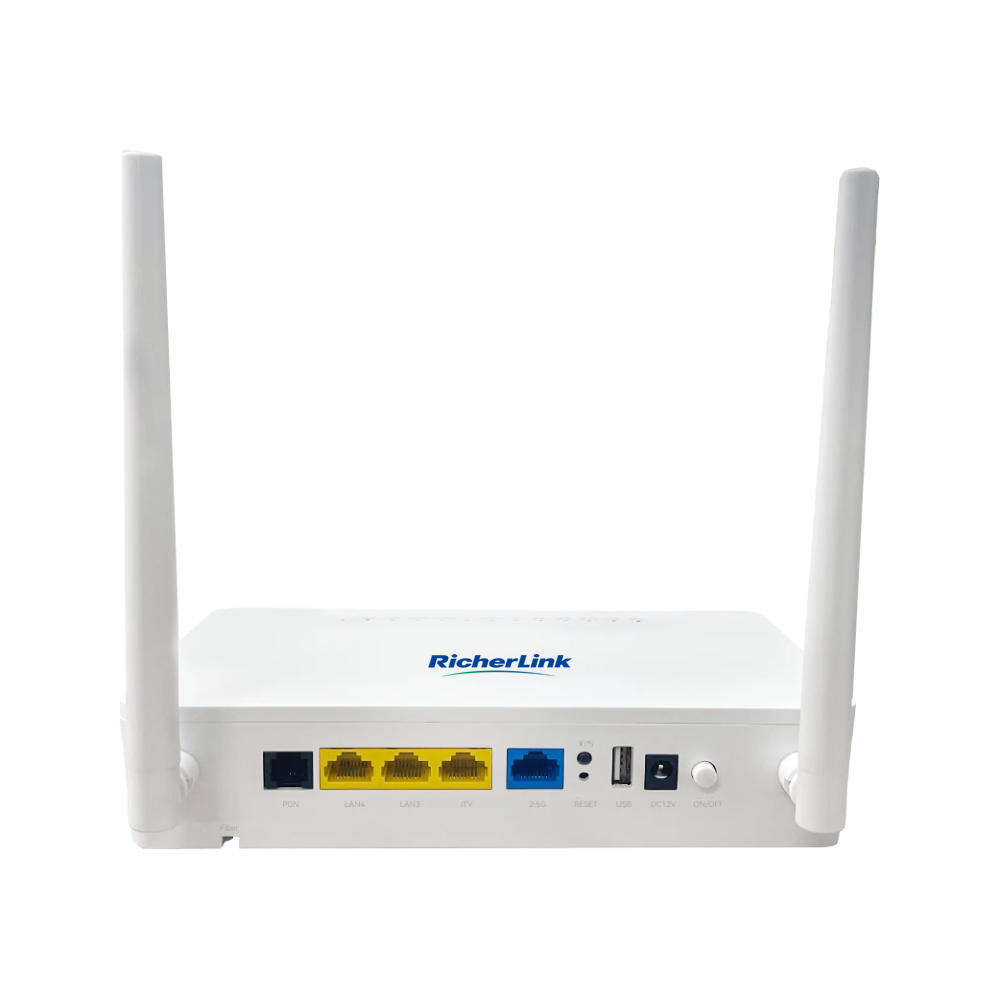

The RL841XGSWV-AX3B is a 10G PON optical terminal designed for FTTH network requirements. Its functions and performance comply with ITU G.987 international standards and are compatible with OLTs from different brands such as HUAWEI, ZTE, and Nokia. With features like high reliability, excellent QoS, manageability, flexible networking, and easy capacity expansion, it fully meets users’ high-speed broadband needs.
| WiFi Baseband |
MT7916AN |
| SLIC |
PEF32001 |
| RAM |
512MB DDR3 |
| ROM |
256MB Flash |
| Interface |
Description |
| ON/OFF |
Power on/off button |
| POWER |
DC adapter interface (DC12V) |
| RST |
Reset button (hold 5s to restore factory defaults) |
| WPS |
Wi-Fi connection button (for quick pairing) |
| ETH Ports |
– LAN1: 2.5Gbps (configurable as WAN)
– LAN2-4: 10/100/1000Mbps |
| Uplink GPON |
SC/UPC or SC/APC optical interface (9.953Gbps uplink to OLT) |
| FXS |
RJ11 interface for voice service |
| USB |
USB 2.0 port (for storage or power supply) |
| Indicators |
Status |
Description |
| POWER |
On |
Power supply normal |
| Off |
No power supply |
| PON |
On |
ONU link active |
| Flash |
Linking to OLT |
| Off |
Received optical power below sensitivity |
| LOS |
On |
No optical signal |
| Flash |
Optical power below sensitivity |
| Off |
Normal optical signal reception |
| Internet |
Off |
No uplink internet connection |
| On |
Uplink internet normal |
| LAN1~LAN4 |
On |
Linked (no data transmission) |
| Flash |
Data transmission in progress |
| Off |
Not connected or powered off |
| WIFI |
Off |
Wi-Fi disabled |
| On |
Wi-Fi enabled (no data transmission) |
| Flash |
Wi-Fi active with data transmission |
| USB |
On |
USB device connected |
| Off |
No USB device connected |
| FXS |
On |
Registered to SIP server (ready for calls) |
| Off |
Not registered to SIP server |
| Flash |
Off-hook, ringing, or calling status |
- PPPoE/Static IP/DHCP
- NAT/NAPT
- Port forwarding
- ALG, UPnP
- DDNS/DNS server/DNS Client
- IPv6/IPv4, DS-Lite
- Static route/default route
- Multi-service WAN support
- VLAN Configuration
- STP (Spanning Tree Protocol)
- MAC address management
- Port management
- IGMP v1/v2/v3 snooping
- IGMP v2/v3 proxy
- MLD v1/v2 snooping
- Multicast over Wi-Fi
- Ethernet port speed limiting
- 802.1p/DSCP priority marking
- SP/WRR/SP+WRR scheduling
- Broadcast packet rate limiting
- 4 priority queues with WRR, SP, and FIFO algorithms
- Congestion avoidance mechanisms
- Anti-DOS attack
- MAC/IP/URL filtering
- OAM/OMCI/Web UI/TR069 management
- Supports SIP and H.248 voice protocols
- SIP Protocol:
- Main SIP proxy port: Provided by ISP (default: 5060, range: 1-65535)
- H.248 Protocol:
- Spare MGC server port: Provided by ISP (default: 2944, range: 1-65535)
- Port ringing current: 50±10VAC, 30±10Hz
- Voice coding: G.711 A-Law/u-Law, G.729A/B, G.723.1, G.726
| Parameter |
Nominal Value |
| Dimensions |
207mm×130mm×48mm (L×W×H) |
| Net Weight |
≈0.6kg |
| Typical Power Consumption |
<24W |
| Noise |
None |
| Cooling Style |
Natural cooling |
| Power Supply |
12V DC (external AC/DC adapter) |
| Installation Style |
Desktop, wall-mounted, or in-wall cabinet |
| Operating Temperature |
0°C~45°C |
| Humidity |
10%~95% RH (non-condensing) |
| Atmospheric Pressure |
70~106Kpa |
| MTBF |
30,000 hours@25°C |
| MTTR |
30 minutes |
| Parameter |
Nominal Value |
| Fiber Connector |
SC/UPC or SC/APC |
| PON Quantity |
1 |
| Fiber Mode |
Single-mode |
| Wavelength |
Tx: 1270±20nm
Rx: 1577±10nm |
| PON Interface Standard |
ITU-T G.9807.x |
| Transmit/Receive Rate |
9.953 Gbps |
| Tx Optical Power |
+2dBm~+6dBm |
| Rx Sensitivity |
-8dBm~-28dBm |
| Maximum Optical Link |
20 km |
| Quantity |
Type |
Remarks |
| 1 |
RJ45 10/100/1000/2.5G BASE-T |
IEEE802.3bz compliant, auto-negotiation |
| 3 |
RJ45 10/100/1000 BASE-T |
IEEE802.3ab compliant, auto-negotiation |
| 1 |
RJ11 |
Voice service (FXS port) |
| 1 |
USB2.0 |
For storage or power supply |
| Wireless Standard |
IEEE 802.11ax/ac/b/g/n |
| Frequency Bands |
2.4GHz: 2.4~2.4835GHz
5GHz: 5.15~5.825GHz |
| Maximum Speed |
2.4GHz (802.11ax): 574Mbps
5GHz (802.11ax): 2402Mbps |
| Channels |
2.4GHz: 1-11
5GHz: 36,40,44,48,52,56,60,64,149,153,157,161 |
| Modulation |
– 802.11b: DSSS (DBPSK/DQPSK/CCK)
– 802.11a/g: OFDM
– 802.11n/ac/ax: MIMO-OFDM/MIMO-OFDMA |
| Sensitivity (@PER 10%) |
– 2.4GHz: -95dBm (MCS0, 20MHz)
– 5GHz: -94dBm (MCS0, 20MHz) |
| Transmission Distance |
Outdoor: >100 meters (environment-dependent) |
| EIRP |
2.4GHz: 20dBm
5GHz: 23dBm |
| Antenna |
2×external 5dBi omnidirectional antennas
1×internal 3dBi omnidirectional antenna |
Ordering Information
| Model |
Product Descriptions |
| RL841XGSWV-AX3B |
XGS PON+3*GE+2.5G LAN+1*POTS+1USB+WIFI6, AX3000 |
