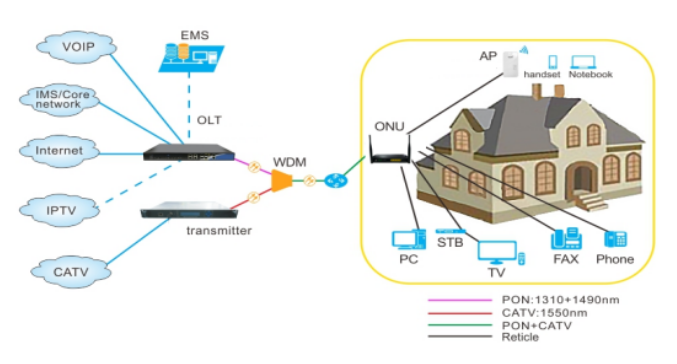

The RL841GWVC-AX3B terminal device is designed to meet the FTTH (Fiber to the Home) and triple-play service demands of fixed network operators or cable operators. Based on mature Gigabit GPON technology, it offers high cost-performance. The device supports multi-WAN connections in bridge or route mode, IPv4 and IPv6 protocol stacks, multicast protocols, QoS, firewall functions, Easy Mesh networking, and TR069 management protocols. It adopts the latest 802.11ax WiFi 6 technology standard (compatible with 802.11ac/b/g/n), supporting a 3000Mbps connection rate and high-quality VoIP services. With large transmission capacity, high speed, high reliability, and easy maintenance, it ensures QoS for various services and fully complies with technical regulations such as ITU-T G.984.x.
The RH841GWVC-AX3B product is shown in Figure 2-1:
Figure 2-1 RH841GWVC-AX3B Product Figure
| Port Type |
Function |
| FIBER |
Connects to PON via SC-type single-mode optical fiber (WDM support: 1550nm for CATV, 1310nm/1490nm for data) |
| USB |
USB2.0 (USB3.0 optional) |
| LAN 1-4 |
RJ45 ports for local network (4×GE ports) |
| RESET |
Press and hold for 5s to restore factory defaults |
| WPS |
Enables wireless security and mesh pairing |
| FXS |
Connects to telephone via telephone wire |
| RF Port |
Connects to set-top box via coaxial cable (for CATV) |
| POWER |
Connects to 12V DC power adapter |
| ON/OFF |
Power switch |
| Indicators |
Status |
Description |
| POWER |
Light On |
ONU powered on normally |
| Light Off |
ONU not powered on |
| PON |
Light On |
ONU registered with OLT |
| Blinking |
ONU attempting to establish a link |
| Light Off |
ONU not registered |
| LOS |
Blinking |
Received optical power below sensitivity |
| Light Off |
Normal optical power reception |
| NET |
Light On |
Active internet connection |
| Light Off |
Internet WAN unconfigured or invalid |
| WIFI |
Light On |
WiFi enabled |
| Light Off |
WiFi disabled or device powered off |
| Blinking |
WiFi active with data transmission |
| LAN 1-4 |
Light On |
Network port linked (no data transmission) |
| Blinking |
Network port with data transmission |
| Light Off |
Port not connected or cable unlinked |
| WPS |
Light Off |
WPS function disabled |
| Blinking |
WPS pairing in progress (within 2 minutes) |
| FXS |
Light On |
Registered to SIP server (ready for voice calls) |
| Light Off |
Not registered to SIP server |
| USB |
Light On |
USB device connected |
| Light Off |
No USB device connected |
| CATV |
Light On |
CATV function working normally |
| Blue Blink |
CATV optical signal out of range (contact operator) |
| Green Blink |
RF function disabled |
| Parameter |
Nominal Value |
| ETH Interface |
4×GE |
| Dimensions |
207mm×130mm×48mm (L×W×H) |
| Net Weight |
0.5kg |
| Typical Power Consumption |
<24W |
| Noise |
None |
| Cooling Style |
Natural cooling |
| Power Supply |
12V DC (external AC/DC adapter) |
| Installation Style |
Desktop, wall-mounted, or in-wall cabinet |
| Operating Temperature |
-5°C ~ 45°C |
| Parameter |
Nominal Value |
| Connector Type |
SC/APC |
| PON Quantity |
1 |
| Fiber Type |
Single mode |
| Wavelength |
TX: 1310±20nm
RX: 1490±10nm |
| PON Interface Standard |
ITU-T G.984.2/G.984.3/G.988 Class B+ |
| Receive Rate |
2.488 Gbps |
| Transmit Rate |
1.244 Gbps |
| Output Optical Power |
Min: 0.5dBm
Max: +5dBm |
| Receiver Sensitivity |
≤-28dBm |
| Maximum Optical Link |
20 km |
| Parameter |
Nominal Value |
| Standard |
IEEE 802.11ax/ac/b/g/n |
| Max Transmission Speed |
2976 Mbps |
| 2.4GHz Speed |
574 Mbps |
| 5GHz Speed |
2402 Mbps (160MHz bandwidth) |
| Channels |
2.4GHz: 1-13
5GHz: 36,40,44,48,52,56,60,64,149,153,157,161,165 |
| Modulation |
– 802.11b: DSSS (DBPSK/DQPSK/CCK)
– 802.11a/g/n/ac/ax: OFDM/MIMO-OFDM with various QAM schemes |
| Antenna |
External 2×5dBi, built-in 1×3dBi
2.4G 2×2 MU-MIMO, 5G 3×3 MU-MIMO |
| Item |
Unit |
Parameter |
| Receiving Wavelength |
nm |
1200~1650 |
| Receiving Power |
dBm |
-18~+0 |
| Reflection Loss |
dB |
≥50 |
| Connector |
– |
SC/APC |
| Fiber Type |
– |
Single mode |
| Isolation (Forward) |
dB |
≥40 |
| Isolation (Reflection) |
dB |
≥22 |
| In-band Flatness |
dB |
±1 |
| Output Reflection Loss |
dB |
≥14 |
| Nominal Output Level |
dBuV |
75±1 (AGC range: -15~-2dBm) |
| Attenuation Range |
dB |
-18~0 |
| C/N (Carrier/Noise) |
dB |
≥46 |
| C/CTB (Carrier/CTB) |
dB |
≥65 |
| C/CSO (Carrier/CSO) |
dB |
≥65 |
| Output Impedance |
Ω |
75 |
| Power Supply |
V |
5 (DC) |
| Power Consumption |
W |
≤1.5 |
| Operating Temperature |
℃ |
0~45 |
| Storage Temperature |
℃ |
-40~75 |
| Relative Humidity |
% |
≤95% (non-condensing) |
Ordering Information
| Model |
Product Descriptions |
| RL804G-BF |
GPON ONU, 4*GE+1*POTS+CATV+USB，WIFI6, AX3000 |
