RicherLink RL841GWV-AX3BF
RL841GWV-AX3BF is an optical gateway launched by our company for the needs of FTTR and POL application. The functions and performances meet IEEE802.3ah, CTC2.1 and ITU-T G.984.x international standards. It supports main stream OLT such as HUAWEI/ZTE/Nokia etc. And also, it can fully satisfy the user’s need of high speed broadband with the features of high reliability, good QoS, manageable, flexible networking, easily capacity expansion.
Uplink optical port is 2.5G/1.25G asymmetric GPON interface, LAN4 is also can be used for WAN port. Downlink optical port is 2.5G/1.25G asymmetric GPON interface.
It has advanced Wi-Fi6 function with supporting IEEE 802.11a/b/g/n/ac/ax.
| CPU |
AN7581CT |
| BOSA Driver Chip |
EN7572AN |
| Wi-Fi Base band |
MT7916AN |
| Wi-Fi RF |
MT7976DN |
| Voice Chip |
PEF32001 |
| RAM |
512MB DDR3 |
| ROM |
256MB Flash |

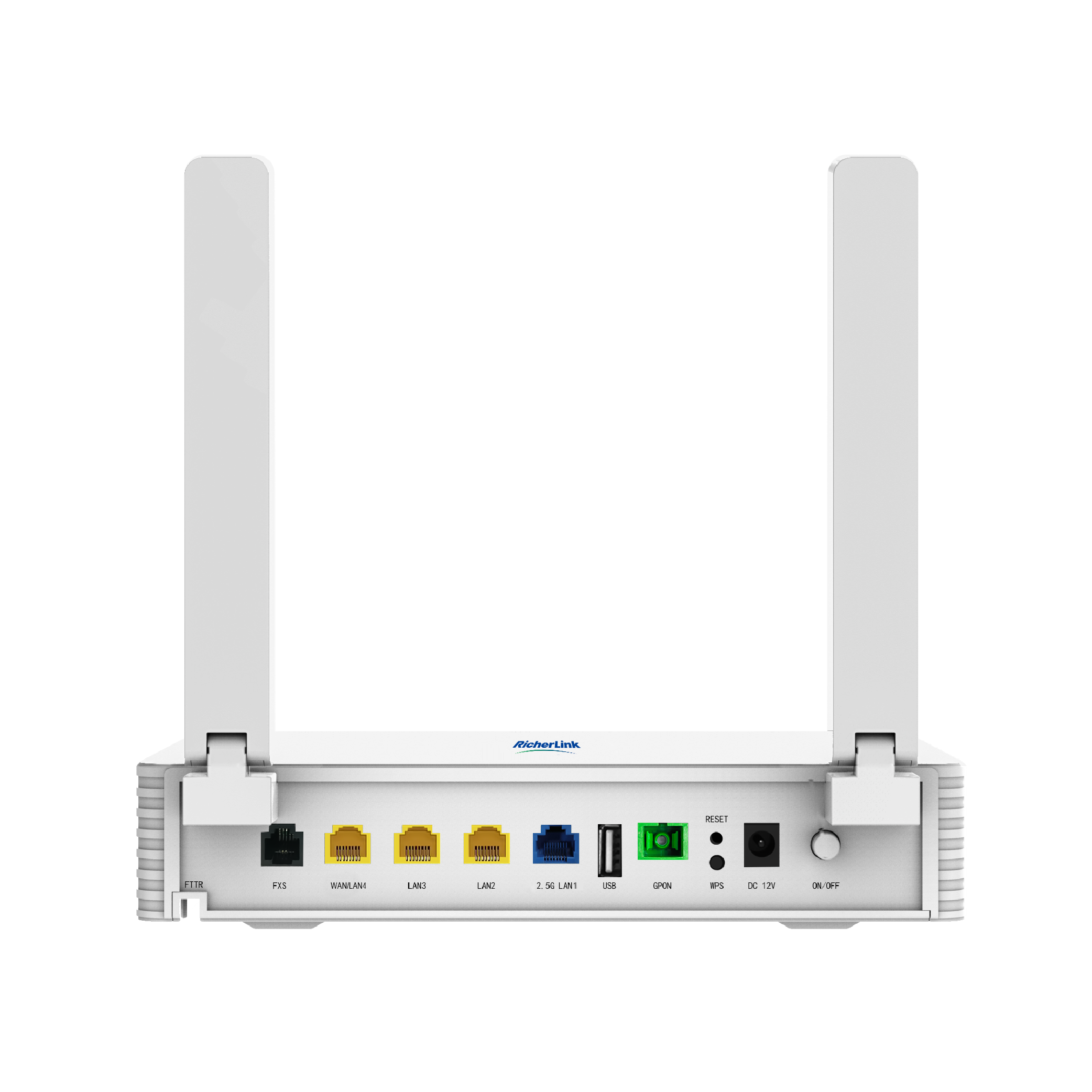

| Interface |
Description |
| ON/OFF |
Power ON/OFF |
| DC 12V |
DC adaptor interface / DC12V |
| RST |
Press reset key and keep 5 seconds to make the device restart and recover from the factory default Settings. |
| MESH |
Easy mesh button , press ≥ 3s , enable the easy mesh function. |
| 2.5G LAN1, LAN2, LAN3, WAN/LAN4 |
RJ-45 LAN port LAN1 ( 2.5Gbps ) , LAN2 ~ 4 (10/100/1000Mbps) |
| UL-PON |
SC/UPC or SC/APC type optical interface, GPON(2.5G/1.25G) Optical Interface, uplink to OLT. |
| DL-PON |
SC/UPC or SC/APC type optical interface, GPON(2.5G/1.25G) Optical Interface , downlink to ONU, Plug and Play |
| FXS |
One RJ11 interface for voice service |
| USB |
One USB 2.0 |

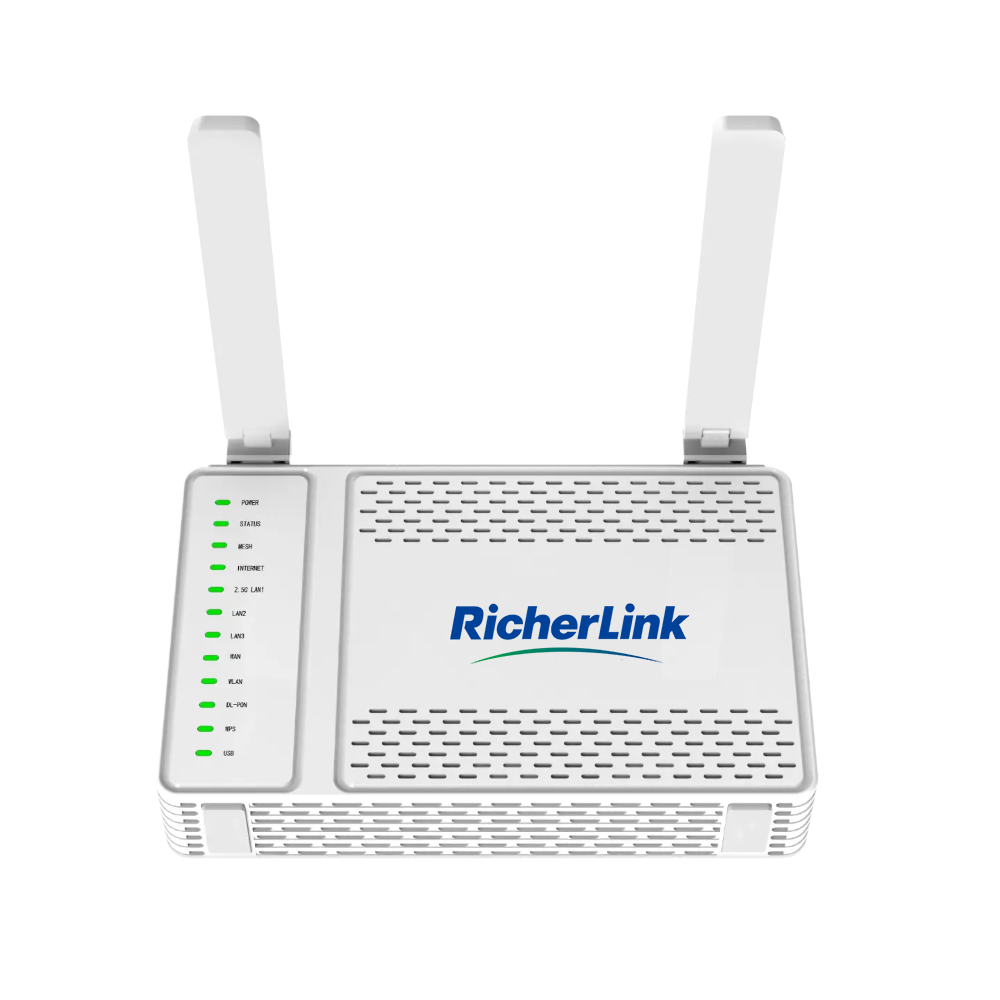

| Indicators |
Status |
Description |
| POWER |
On |
Power supply normally |
| Off |
ONU no power supply |
| UL-PON |
On |
ONU link active |
| Flash |
ONU linking |
| Off |
ONU receiving power rate lower than optical receive sensitivity |
| DL-PON |
On |
Downlink ONU is active |
| Flash |
Downlink ONU is linking |
| Off |
No downlink ONU is connected |
| LOS |
On |
No optical signal |
| Flash |
Receiving power lower than optical receiver sensitivity |
| Off |
Received optical signal normal |
| Internet |
Off |
Uplink internet but no data |
| On |
Uplink internet is normal |
| LAN1 ~ LAN4 |
On |
Linked, but no data transmitting |
| Flash |
Linked, but no data transmitting |
| Off |
no power supply or disconnected |
| WLAN(2.4G and 5G) |
Green Off |
Wi-Fi off |
| Green On |
Wi-Fi on, but no data transmitting |
| Green Flash |
Wi-Fi on and with data transmission |
| MESH |
Blue Off |
Mesh function is disabled or Mesh networking is successful for more than 10 seconds. |
| Flash Blue |
Mesh networking is in progress. |
| Blue On |
Mesh networking is successful, the blue indicator will turn off after 10s. |
| USB |
On |
USB storage is connected |
| Off |
USB storage is disconnected |
| Network Services |
Ethernet Uplink Easy mesh Networking Parental Control SIP/H.248 |
| Layer 3 Features |
ipv4,ipv6,ipv4/ipv6 Dual Stack Port Mapping ALG, UPnP, DDNS, DMZ NAT/NAPT Static Route/Default Route Multi-Services Integration |
| multicast |
IPV4/IPV6 multicast |
| QOS |
Ethernet port speed limit |
| Security |
Firewall Anti-DOS attack MAC/IP/URL Address Filtering |
| OAM |
OAM/OMCI/Web UI/TR069/AVASA ( optional ) |
| Home Network |

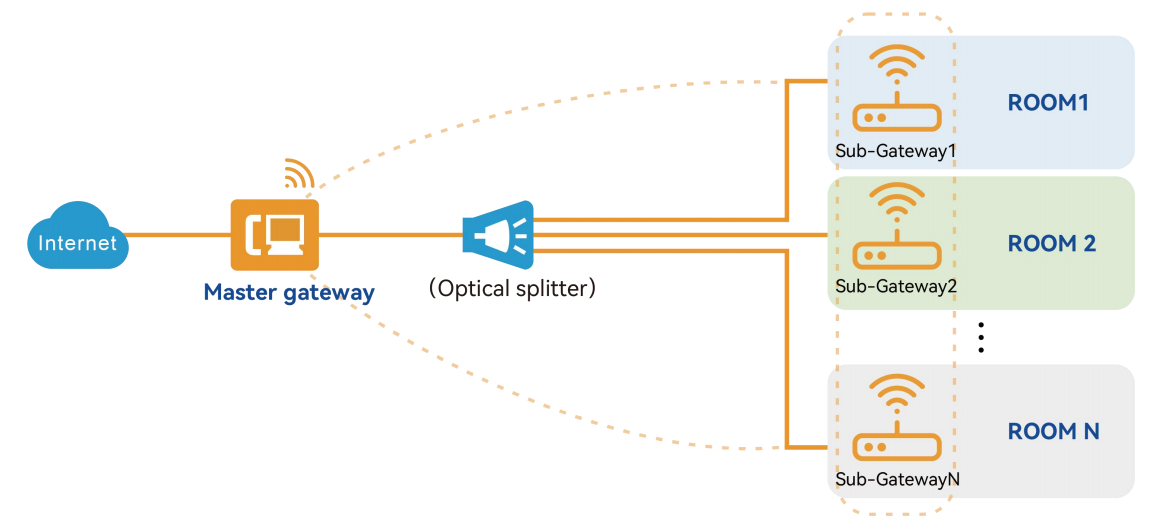

As the master FTTR Gateway, it realizes full-optical networking at home. No electromagnetic interference and low latency. Home Network Visual Management Wi-Fi Channel Optimization for home network Wi-Fi Seamless Roaming ( 802.11k/802.11v ) * |
| Remark*: |
User terminal devices need to support 802.11k/802.11v. |
| Parameter |
Nominal Value |
| Dimension |
217mm × 157mm × 53mm ( LWH ) |
| Net weight |
0.78kg |
| Typical power consumption |
< 24W |
| Power supply |
12V DC ( external AC/DC adapter ) |
| Installation style |

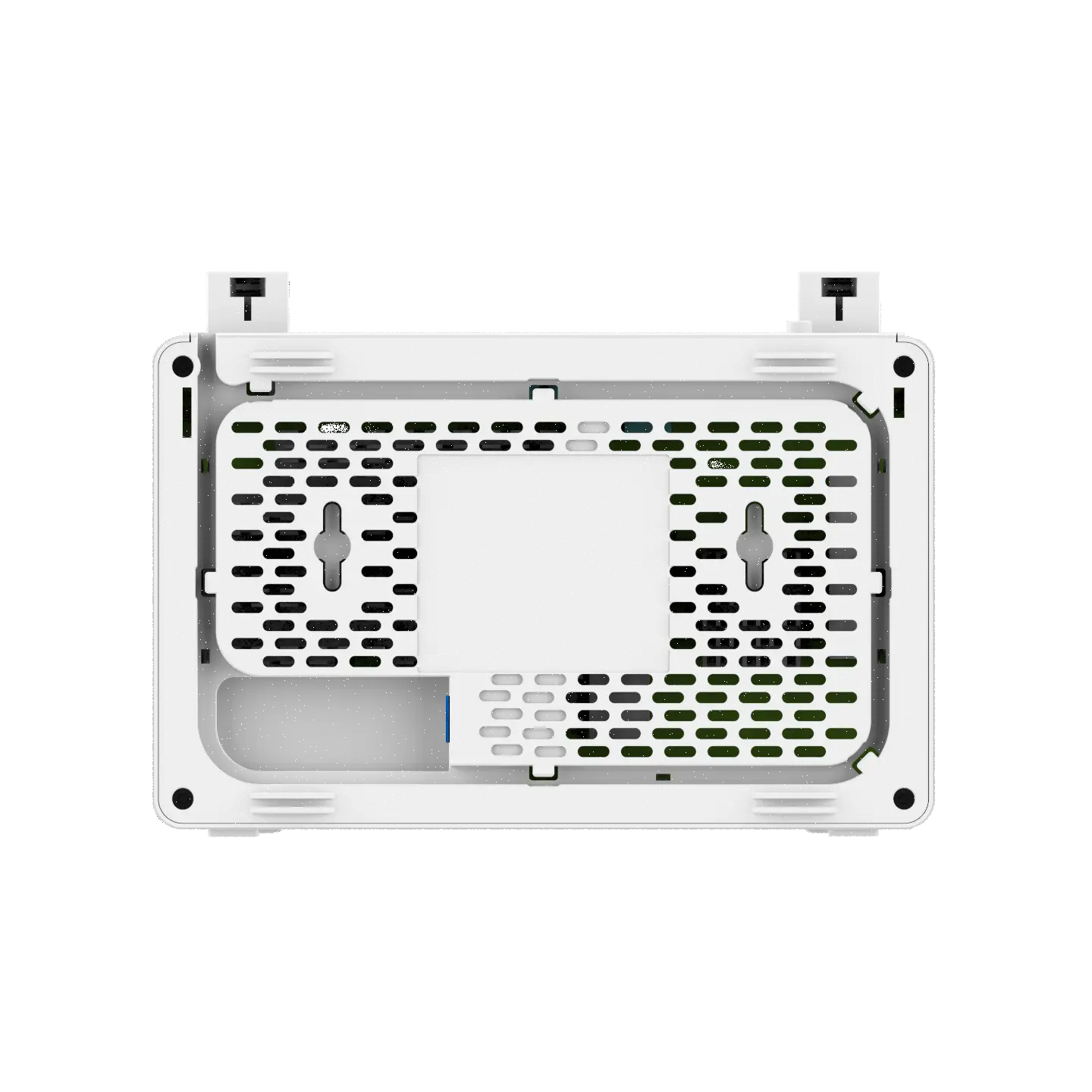

Support Desk, wall mount or put inside of information box. |
| Operating Temperature |
0 ℃~ 45 ℃ |
| Operating Humidity |
10%RH ~ 95%RH (non-condensing) |
| Parameter |
Nominal Value |
| Fiber Connector |
SC/UPC or SC/APC |
| PON Quantity |
1 |
| Fiber Mode |
Single-mode Fiber |
| Wavelength |
TX: 1310 ± 20nm Rx: 1490 ± 10nm |
| PON Interface Standard |
ITU-T G.984.x |
| PON interface receiving rate |
2.488Gbps |
| PON interface transmitting rate |
1.244Gbps |
| TX Optical Power |
+0.5dBm ~ +5dBm |
| RX receiving sensitivity |
-8dBm ~ -28dBm |
| The length of the optical link |
Max 20km |
| Parameter |
Nominal Value |
| Fiber Type |
Single Mode Fiber |
| Wavelength (Downlink/Uplink) |
TX: 1490 ± 10nm, Rx: 1310 ± 20nm |
| Standard |
ITU-T G.984.x |
| Rate |
2.488Gbps (Receive)/1.244Gbps (Transmit) |
| Optical Power |
Transmit: -4~0dBm, Receive: -22~0dBm |
| Ethernet Interface |
RJ45 (10/100/1000/2.5G BASE-T), support IEEE802.3bz standard, automatic negotiation and network cable detection |
Same as 1.2 Interface description.
| Parameter |
Specification |
| Frequency Range |
2.4G：2.4~2.4835GHz
5G：5.15~5.825GHz |
| Transmission Speed |
2.4G (802.11ax 2×2)：Max 574Mbps
5G (802.11ax 2×2)：Max 2400Mbps |
| Channels |
2.4G：1~13
5G：36、40、44、48、52、56、60、64、149、153、157、161、165 |
| Modulation Technology |
MIMO-OFDM (802.11a/n/ac)：BPSK、QPSK、16QAM、64QAM、256QAM（MCS0-MCS9）
802.11ax：MIMO-OFDMA，support 1024QAM（MCS0-MCS11） |
| EIRP (Equivalent Isotropic Radiated Power) |
2.4G：20dBm，5G：23dBm |
| Antenna |
4×External omnidirectional antenna (5dBi, 2×2.4G + 2×5G), 1×Internal omnidirectional antenna (5dBi) |
Ordering Information
| Model |
Product Descriptions |
| RL841GWV-AX3BF |
FTTR Master，1*GPON, 1*GPON OLT+1*2.5GE+3*GE+FXS+USB,WIFI6,AX3000 |
