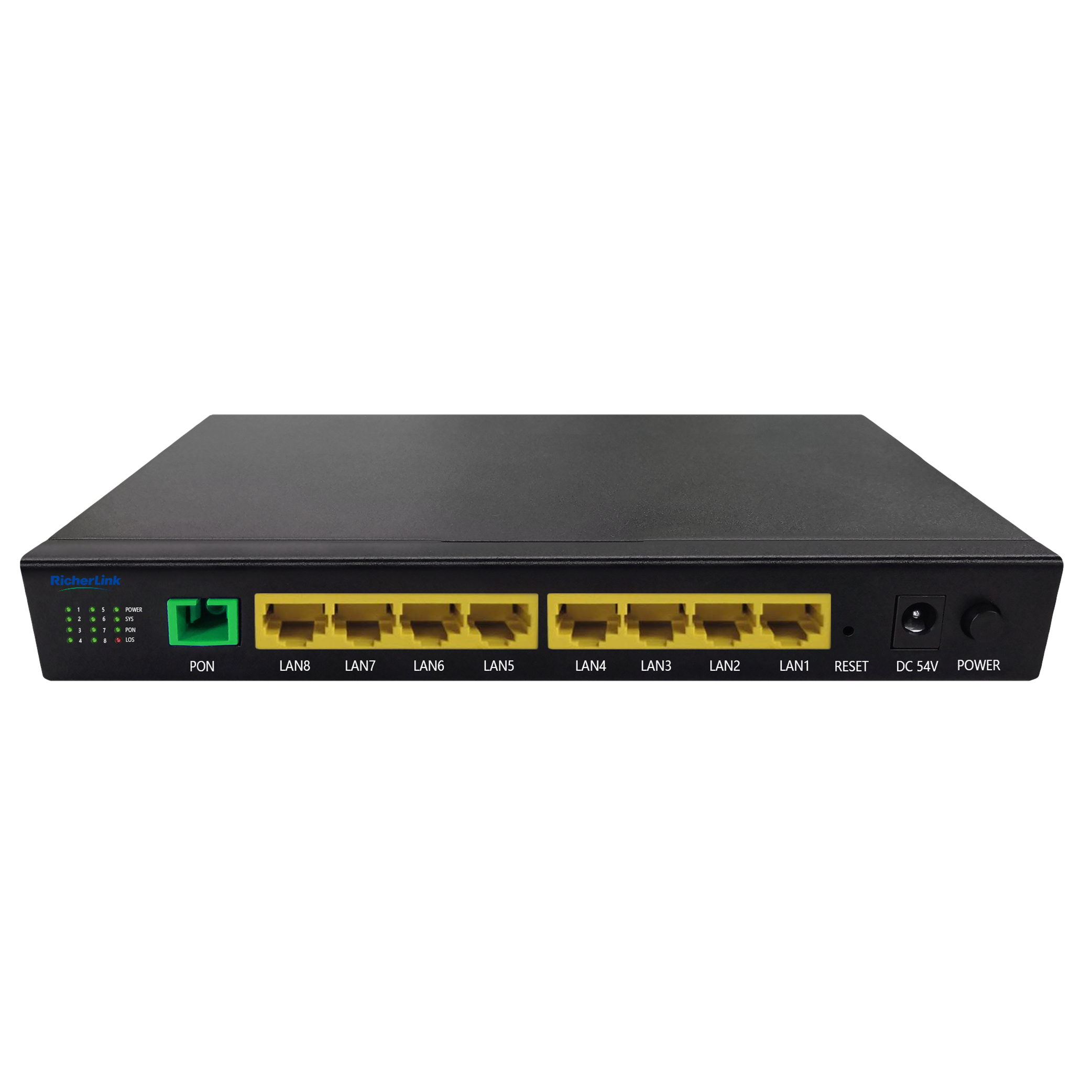

RL808GP

GPON ONU，8*GE，support POE

The RL808GP is developed by RicherLink based on mature, stable, and cost-effective Gigabit PON technology, integrating Gigabit Ethernet switching technology. It features high reliability, easy manageability, and excellent quality of service (QoS) assurance. Complying with relevant standards, it provides comprehensive fiber access solutions. With a PON interface, optional WAN/LAN Ethernet ports, and multiple LAN ports (all 8 ports supporting the 802.11at/af POE protocol), the RL808GP brings you into the era of high-speed networking!

Hardware Specifications

Network-Side Interface	User-Side Interface
1×PON, 4×GE (WAN/LAN optional)	4×GE LAN, 4×GE (WAN/LAN optional)
Power Supply	Power Consumption
External power adapter (DC56V/2.6A)	<145W
Operating Temperature	Operating Humidity
0°C ~ +45°C	5% ~ 95% (non-condensing)
Dimensions	Net Weight
219×124×34mm (L×W×H)	Approximately 0.62Kg

Interface Parameters

Interface Type	Interface Parameters
Network-side interface	1×PON interface 4×GE (WAN/LAN optional) Output power: 0.5dBm~5dBm Receiver sensitivity: -8dBm~-28dBm
User-side interface	4×GE (WAN/LAN optional) 4×GE LAN

Product Functions

Enterprise Network	Layer 3 Services
– Supports all-optical enterprise management – Provides high-speed Ethernet connections for data transmission – Visualizes enterprise network topology, monitors network performance in real time, and generates data analysis and reports	– IPv4, IPv6, IPv4/IPv6 dual stack – Port mapping – ALG, UPnP, DDNS, DMZ – NAT/NAPT – Static routing/default routing – Multi-service convergence
Multicast	QoS
– IPv4/IPv6 multicast	– QoS rate limiting
Security	Operation & Management
– Firewall – Anti-DOS attack – MAC/IP/URL address filtering	– OMCI/Web UI/TR069/Cloud NMS (optional)
Service Interconnection
– Compatible with different devices and systems for easy integration and expansion – POE power management for flexible power allocation based on device needs, reducing power consumption during idle periods for energy conservation

Ordering Information

Model	Product Descriptions
RL808GP	GPON ONU，8*GE，support POE
