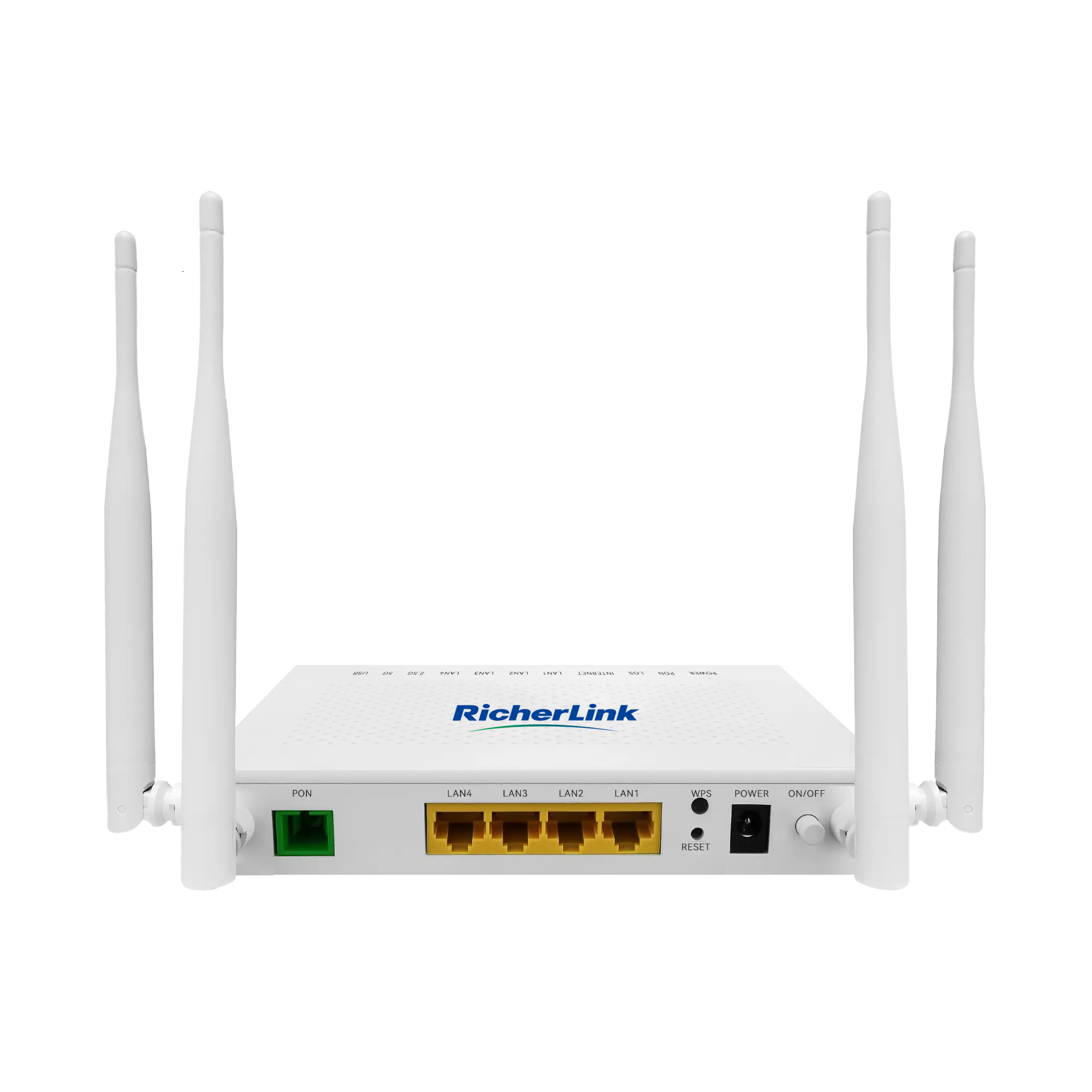

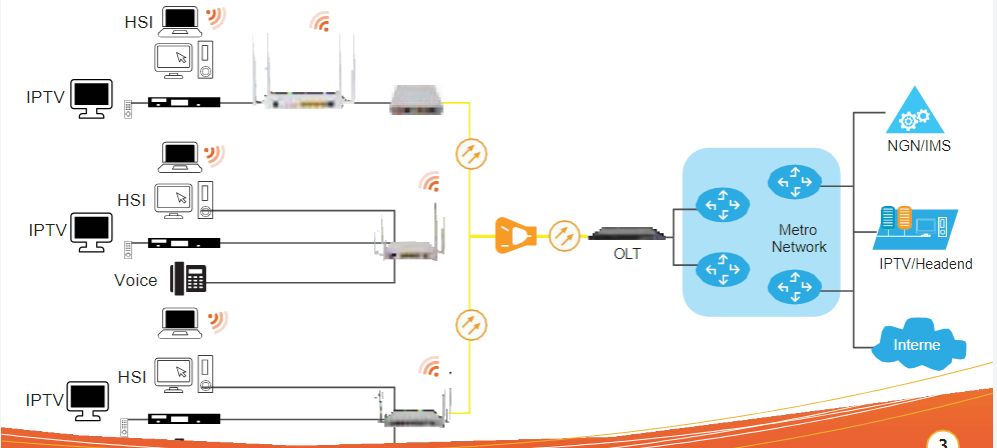

The RL804GW-DG terminal device is designed to meet the FTTH (Fiber to the Home) and triple-play service demands of fixed network operators or cable operators. Based on mature Gigabit GPON technology, it offers high cost-performance and integrates 802.11n/ac Wi-Fi with wireless power reaching over 23dBm for Layer 2/3 services. It ensures high reliability, easy maintenance, and guaranteed QoS for diverse services, fully complying with technical regulations such as ITU-T G.984.x and GPON equipment standards.
| Parameter |
Nominal Value |
| Connector Type |
SC/APC or SC/UPC |
| PON Quantity |
1 |
| Fiber Type |
Single mode |
| Wavelength |
TX: 1310 ±20nm
RX: 1490 ±10nm |
| PON Interface Standard |
ITU-T G.984.2/G.984.3/G.988 Class B+ |
| Receive Rate |
2.488 Gbps |
| Transmit Rate |
1.244 Gbps |
| Output Optical Power |
Min: 0.5dBm
Max: +5dBm |
| Receiver Sensitivity |
≤-28dBm |
| Maximum Optical Link |
20 km |
| Standard |
IEEE 802.11 ac/b/g/n |
| Frequency Bands |
2.4GHz: 2412~2472MHz
5GHz:
Band 1: 5.15~5.25GHz
Band 2: 5.25~5.35GHz
Band 3: 5.500~5.700GHz
Band 4: 5.725~5.825GHz |
| Transmission Speed |
– 802.11b: 11/5.5/2/1Mbps (Auto)
– 802.11g: 54/48/36/24/18/12/9/6Mbps (Auto)
– 802.11n (2.4GHz): Up to 300Mbps
– 802.11n (5GHz): Up to 300Mbps
– 802.11ac: Up to 867Mbps |
| Channel Number |
2.4GHz: 13 channels
5GHz: 4 channels (region-dependent) |
| Spread-spectrum Technique |
DSSS (Direct Sequence Spread Spectrum) |
| Modulation |
DBPSK, DQPSK, CCK, OFDM (BPSK/QPSK/16-QAM/64-QAM) |
| Sensitivity (@PER 10%) |
– 270Mbps: -68dBm
– 108Mbps: -68dBm
– 54Mbps: -68dBm
– 11Mbps: -85dBm
– 6Mbps: -88dBm
– 1Mbps: -90dBm |
| Transmission Distance |
Indoor: Up to 120m
Outdoor: Up to 360m (environment-dependent) |
| RF Power (EIRP) |
– 2.4GHz: 20dBm
– 5GHz:
Band 1: 17.45dBm
Band 2: 17.82dBm
Band 3: 17.92dBm
Band 4: 18.92dBm |
| Antenna |
5dBi omnidirectional antennas |
| Parameter |
Nominal Value |
| Dimensions |
176mm×112mm×31mm (L×W×H) |
| Net Weight |
0.35kg |
| Typical Power Consumption |
<8W |
| Noise |
None |
| Cooling Style |
Natural cooling |
| Power Supply |
12V DC, 1.0A |
| Installation Style |
Desktop, wall-mounted, or in-wall cabinet |
| Operating Temperature |
5°C~50°C |
| Atmospheric Pressure |
70~106Kpa |
| MTBF |
50,000 hours@25°C |
| MTTR |
30 minutes |
- Supports TR069, NAT, DMZ, DNS
- Multiple SSID configurations
- Multiple VLAN support
- MU-MIMO (Multi-User Multiple Input Multiple Output)
- Easy-Mesh networking
- IPv6, PPPoE, DHCP, and static IP configuration for WAN interface
- IP/MAC filtering and firewall in routed mode
- XPON compatible (adaptive to EPON/GPON OLT)
| Port Type |
Function |
| PON Port |
Connects to the PON network via SC-type single-mode optical fiber cable |
| LAN 1~4 Ports |
RJ45 ports for local network connection (4×GE ports) |
Ordering Information
| Model |
Product Descriptions |
| RL804GW-DG |
GPON ONU, 4*GE+CATV+WDM+WIFI5 AC1200 |
