The RL802XGS is an XGSPON (10G Symmetric Passive Optical Network) Optical Network Terminal (ONT) compliant with ITU-T G.9807.x standards, designed for high-end home users. Ideal for Fiber to the Home (FTTH) scenarios, it supports desktop or wall-mounted installation. The network side supports 10Gbps downstream and 10Gbps upstream, while the user side provides one GE port and one 10GE port.
| Main Chip |
Airoha AN7583ST |
| Bosa Chip |
EN7573AN |
| RAM |
256MB DDR3 |
| ROM |
256MB Flash |

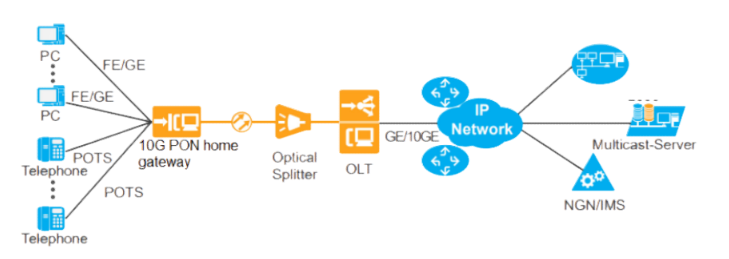

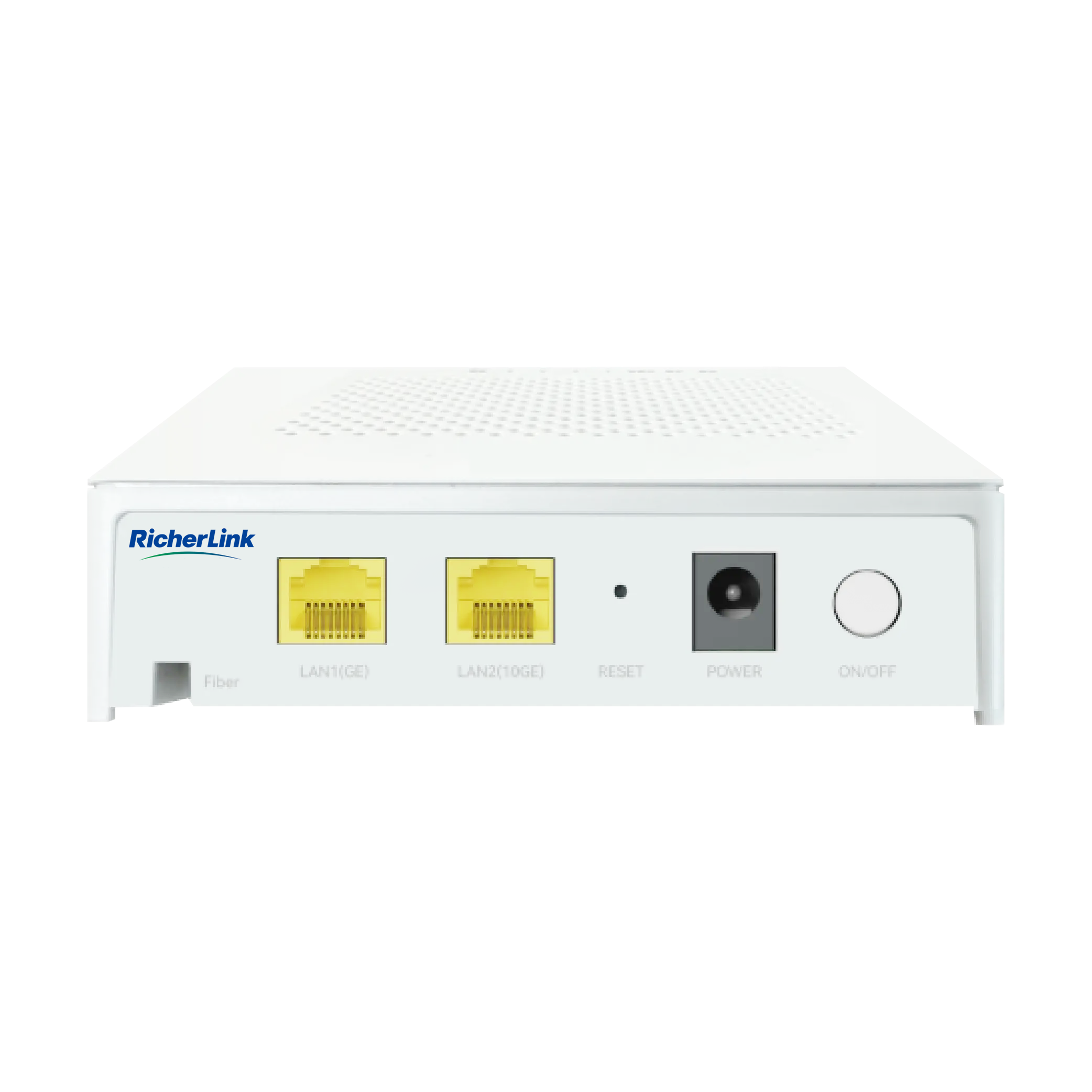

RH802XGS Product Interface Description:
| Ports |
Description |
| ON/OFF |
Power on/off button |
| POWER |
DC power adapter port (DC12V) |
| RST |
Restore Factory Settings button (hold for 5s to reset to default) |
| Ethernet Ports |
– LAN1: 10/100/1000Mbps (GE)
– LAN2: 10Gbps (10GE) |
| XGS-PON |
SC/APC optical pigtail connector for network optical signal connection |
| Indicator Name |
Display Function |
| Power |
– Off: Not powered on or indicator disabled
– Steady on: Powered on and running normally
– Blinking: Booting up |
| XGS-PON |
– Off: OLT registration/authorization failed
– Steady on: OLT registered/authorized
– Blinking: Registering with OLT |
| LOS |
– Off: Normal optical signal reception
– Blinking red: Optical power below sensitivity
– Steady red: PON optical module power off |
| Internet |
– Off: WAN connection unconfigured or invalid
– Steady on: Valid WAN connection (bridge/routed mode with IP/DNS obtained) |
| 10G LAN |
– Off: Not connected
– Steady on: Connected (no data transmission)
– Blinking: Data transmission in progress |
| GE LAN |
– Off: Device powered off or not connected
– Steady on: Connected (no data transmission)
– Blinking: Data transmission in progress |
- VLAN Configuration
- Spanning Tree Protocol (STP)
- MAC Address Management
- Port Management
- IGMP v1/v2/v3 snooping
- IGMP v2/v3 proxy
- MLD v1/v2 snooping
- Multicast over Wi-Fi
- Ethernet port speed limiting
- 802.1P/DSCP priority marking
- SP/WRR/SP+WRR scheduling algorithms
- Broadcast packet rate limiting
- Port/flow-based advanced queue scheduling (4 priority queues with WRR, SP, FIFO)
- Congestion avoidance mechanisms
- DoS attack protection
- MAC/IP/URL address filtering
- OAM/OMCI/Web UI management
| Parameter |
Nominal Value |
| Dimensions |
To be specified |
| Net Weight |
To be specified |
| Power Supply |
DC12V |
| Operating Temperature |
-10°C ~ 55°C |
| Humidity |
10%~95% (non-condensing) |
| Atmospheric Pressure |
70~106Kpa |
| MTBF (Mean Time Between Failures) |
50,000 hours@25°C |
| MTTR (Mean Time To Repair) |
30 minutes |
| Parameters |
Nominal Values |
| Connector Type |
SC/APC (default) |
| XGS-PON Quantity |
1 |
| Fiber Type |
Single mode |
| Wavelength |
– Upstream: 1260-1280nm
– Downstream: 1575-1580nm |
| PON Interface Standard |
ITU-T G.9807.x |
| Transmit Rate |
9.953 Gbps |
| Receive Rate |
9.953 Gbps |
| Output Optical Power |
+2dBm ~ +6dBm |
| Receiver Sensitivity |
-8dBm ~ -28dBm |
| Maximum Optical Link Length |
Up to 40km |
| Quantity |
Interface Type |
Remarks |
| 1 |
RJ45 10/100/1000/2.5G/5G/10G BASE-T |
Compliant with IEEE802.3bz, supports direct cable connection and auto-negotiation |
| 1 |
RJ45 10/100/1000 BASE-T (GE) |
Compliant with IEEE802.3ab, supports direct cable connection and auto-nego |
Ordering Information
| Model |
Product Descriptions |
| RL802XGS |
10GPON ONU，1*10GE+1*GE |
