RL802GW-AX3L

GPON，2*GE+WIFI6，AX3000，support POF

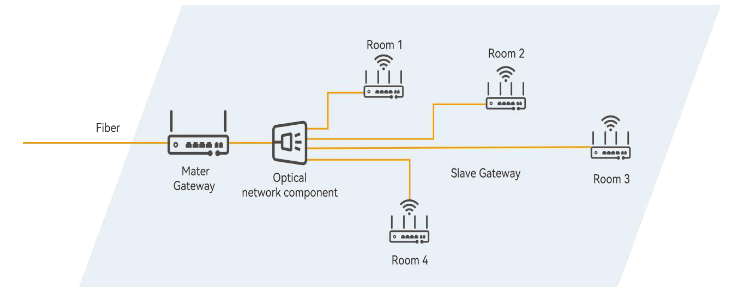

The RL802GW-AX3L is a slave GPON gateway designed for FTTR (Fiber to the Room) applications. It complies with ITU G.984 international standards and supports multi-WAN connections in bridge or route mode, IPv4/IPv6 protocol stacks, multicast protocols, QoS, firewall functions, Easy Mesh networking, and the TR069 management protocol. Deployed in user rooms, the slave gateway connects to the master gateway via optical fiber through its PON interface and auto-meshes within the all-optical network. With advantages such as high quality, reliability, smart management, and easy meshing, it effectively meets high-speed access requirements.

2. Hardware Specifications

2.1 Hardware Parameters

WiFi Base-band	MT7916AN
RAM	512MB DDR3
ROM	256MB Flash

2.2 Device Interface

Interface	Indicator	Description
DC Port	DC 12V	DC adapter interface: DC12V
Reset Key	RST	Press and hold for 5 seconds to restart and restore factory defaults
WPS Key	WPS	Wi-Fi connection button (also for mesh pairing)
LAN1/LAN2		RJ-45 ports (10/100/1000Mbps), LAN1~2 for local network connections
GPON Port	PON	SC/UPC or SC/APC connector, 2.5G/1.25G optical interface, uplink to FTTR master gateway (plug-and-play)

2.3 Indicators of Device

Indicators	LED Color	Status & Descriptions
Power	Green	ON: Powered on OFF: Powered off
PON	Blue/Red	– Blue OFF: Activation not started – Blue ON: Link active – Blue Flash: Linking – Red OFF: Normal optical signal – Red Flash: Low optical power – Red ON: No optical signal (Blue LED off when Red is active)
WLAN	Blue/Green	– Blue ON: WLAN (2.4G & 5G) enabled – Green ON: WPS/Mesh successful (stays on for 5s) – Green Flash: WPS/Mesh pairing in progress – Green OFF: WPS/Mesh failed or completed (Blue LED off when Green is active)

Ordering Information

Model	Product Descriptions
RL802GW-AX3L	GPON，2*GE+WIFI6，AX3000，support POF
