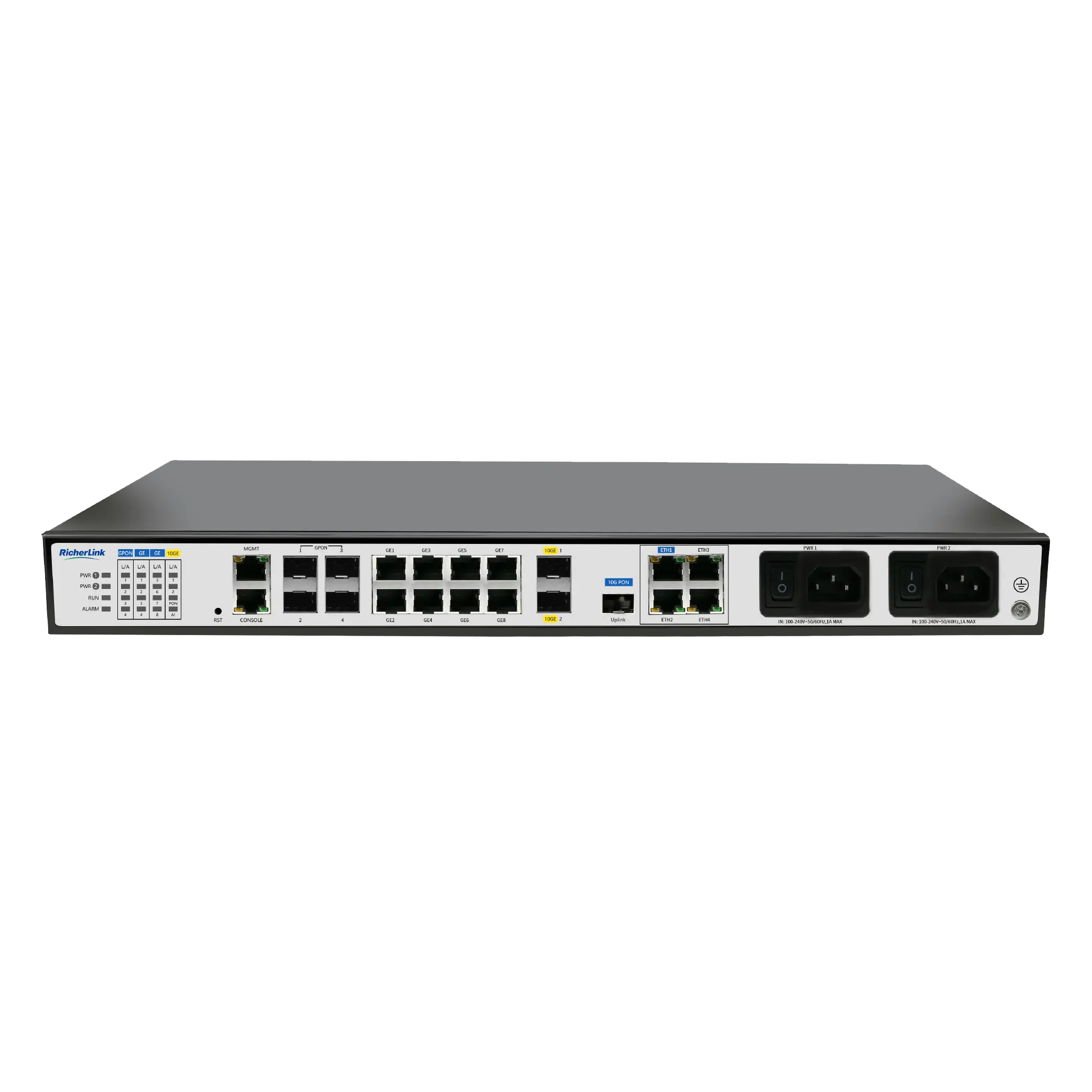

RL8004GR

FTTR Master，1*10GPON+4GE,2*10GSPF+8*GE+4*GPON OLT

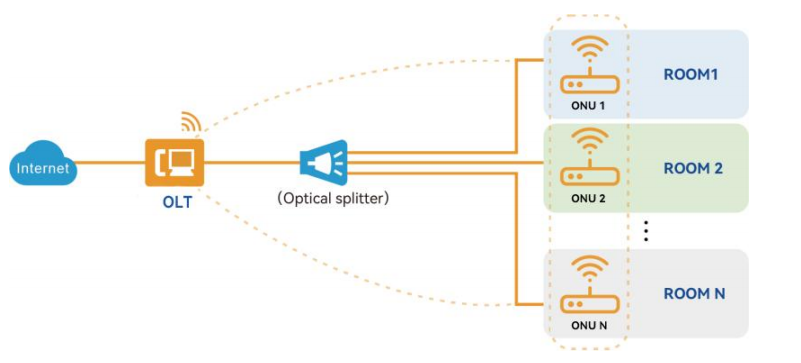

The RL8004GR is an OLT (Optical Line Terminal) product launched by our company to meet the needs of enterprise all-optical network construction. It features high integration, high reliability, excellent QoS (Quality of Service) guarantee, manageability, scalability, and flexible networking. It enables over 10G all-optical access for enterprises, works with optical APs to achieve gigabit Wi-Fi coverage in enterprises, and supports AI modules (optional). Suitable for deployment in network environments such as small and micro enterprises and commercial buildings, it effectively meets users’ high-speed broadband access requirements.

Hardware Specification

Uplink Interface	Downlink Interface
1×XG-PON (or 2×10G SFP) + 4×GE	4×GPON + 8×GE + 2×10G SFP
Power Supply	Power Consumption
Built-in AC/DC power module (DC12V/6A) Input: 100~240V AC, 50/60Hz	<60W
Operating Temperature	Operating Humidity
-10°C ~ +45°C	10% ~ 95% (Non-condensing)
Dimensions	Net Weight
440×362×44mm (L×W×H)	<5Kg

Interface Parameters

Interface Type	Interface Parameters
Uplink interface	1×SC/UPC XG-PON interface GE RJ45 ports (ETH1 port can be used as a WAN port)
Downlink PON port	4×GPON Interface type: SFP+
LAN port	RJ45 ports 8×GE ports
Management interface	RJ45 GE port
CONSOLE	RJ45 port

Product Functions

Enterprise Network	Layer 3 Services
– Supports all-optical enterprise Wi-Fi coverage – Fiber optic with no electromagnetic interference and low latency – Visual management of enterprise network topology	– IPv4, IPv6, IPv4/IPv6 dual stack – Port mapping – ALG, UPnP, DDNS, DMZ – NAT/NAPT – Static routing/default routing – Multi-service convergence
Multicast	QoS
– IGMP v1/v2/v3 snooping – IGMP v2/v3 proxy – MLD v1/v2 snooping	– QoS rate limiting
Security	Operation & Management
– Firewall – Anti-DOS attack – MAC/IP/URL address filtering	– OMCI/Web UI/TR069/Cloud Network Management
Network Services	Optional Features
– GPON/XGPON/XGS-PON/10GE/GE upstream – Easy Mesh networking/AC management	– AI module (optional), providing 10.8 TOPS computing power – Dual power backup

Ordering Information

Model	Product Descriptions
RL8004GR	FTTR Master，110GPON+4GE,210GSPF+8GE+4GPON OLT
