The RL8004ES is a high-integration EPON OLT switching device newly developed by RicherLink. Complying with IEEE802.3ah and China’s communication industry standard (YD/T 1475-2006), it provides superior switching capabilities and carrier-grade reliability and security features through industry-leading chip solutions. Its powerful O&M monitoring functions, rich service features, and flexible networking support long-distance fiber access. The RL8004ES can also provide better management and maintenance solutions via RicherLink’s NMS3000 network management platform.

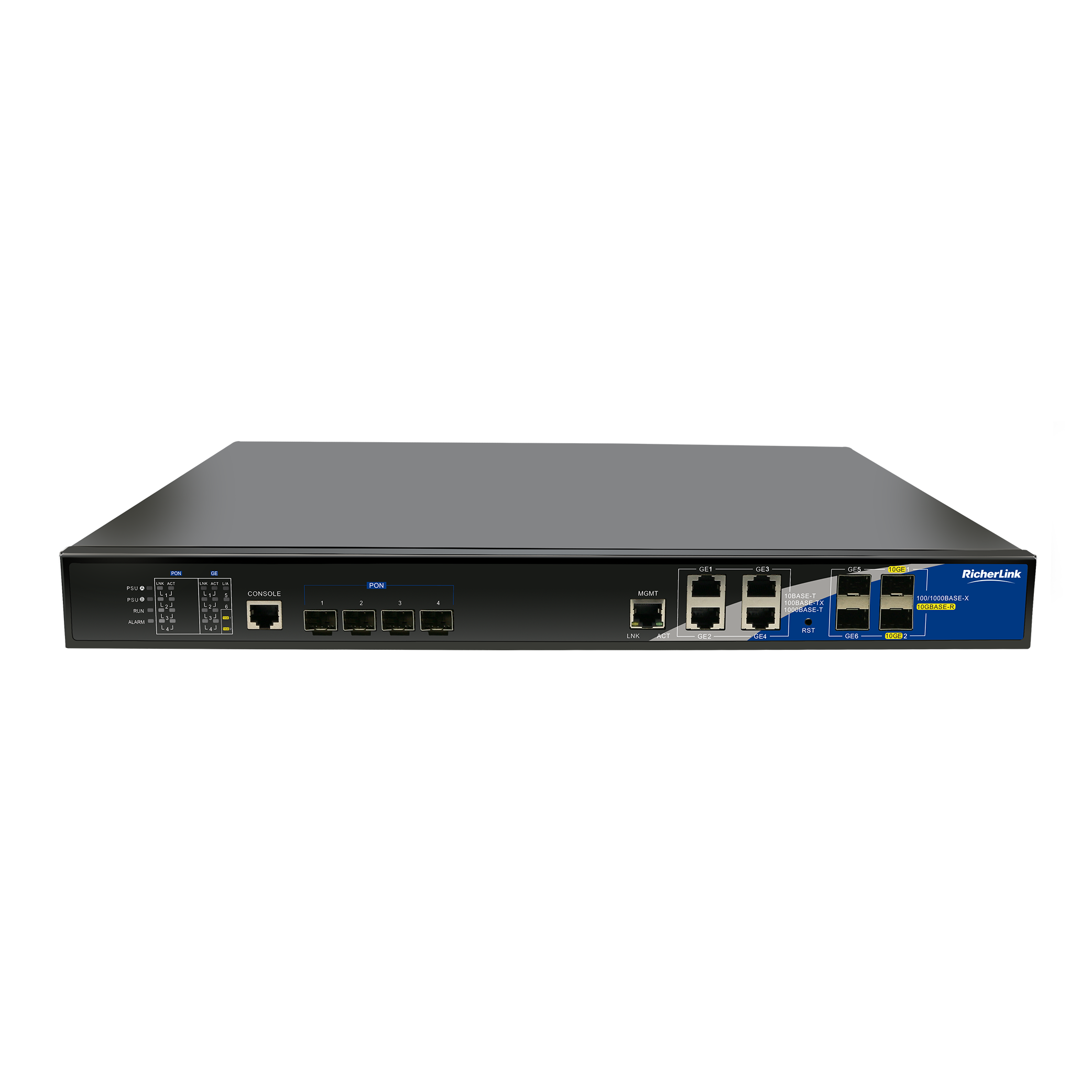

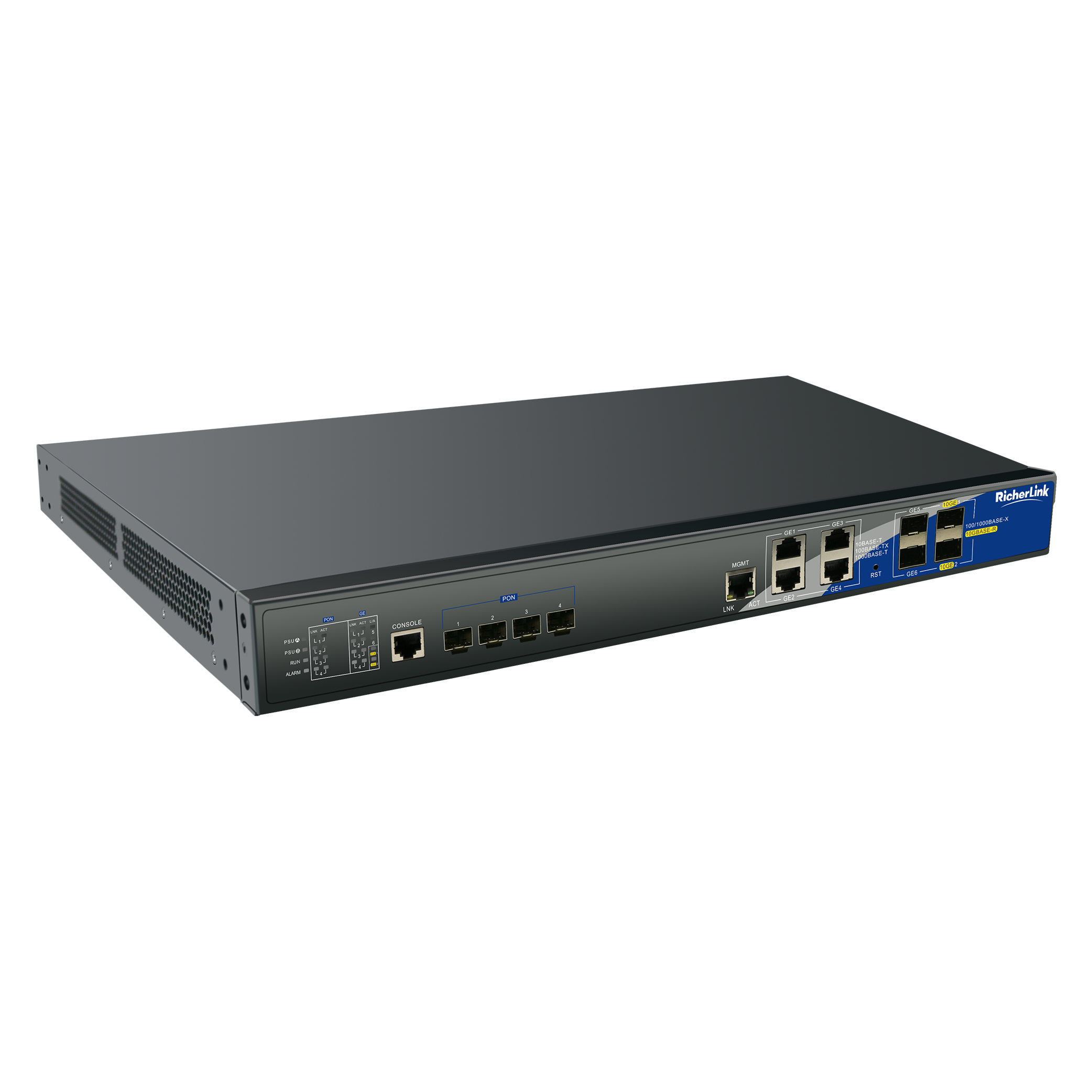

The RL8004ES EPON OLT device offers 4 standard EPON ports for downlink, 4 GE electrical ports for uplink, and 4 10G SFP+ optical ports for uplink. It supports SLA and DBA, a split ratio of up to 1:64, and can connect up to 256 ONU end-users. It supports hybrid networking with different types of ONUs. With a simple and compact 1U design, it is easy to install and maintain, saving space. The product is suitable for various needs such as triple-play networks, video networks, corporate LANs, and WANs.
| Interface Type |
Specification |
| EPON Interfaces |
4 x EPON (1.25/1.25 Gbps) |
| Uplink Optical Ports |
4 x 10GE SFP+ optical ports |
| Uplink Electrical Ports |
4 x RJ-45 Ethernet electrical ports |
| PON Interface Standard |
IEEE 802.3ah EPON |
| Local Management Ports |
100BASE-T in-band Console management port
1000BASE-T out-of-band MGMT port |
| Parameter |
Value |
| Splitting Ratio |
1:64 |
| Max. ONU Connections |
256 |

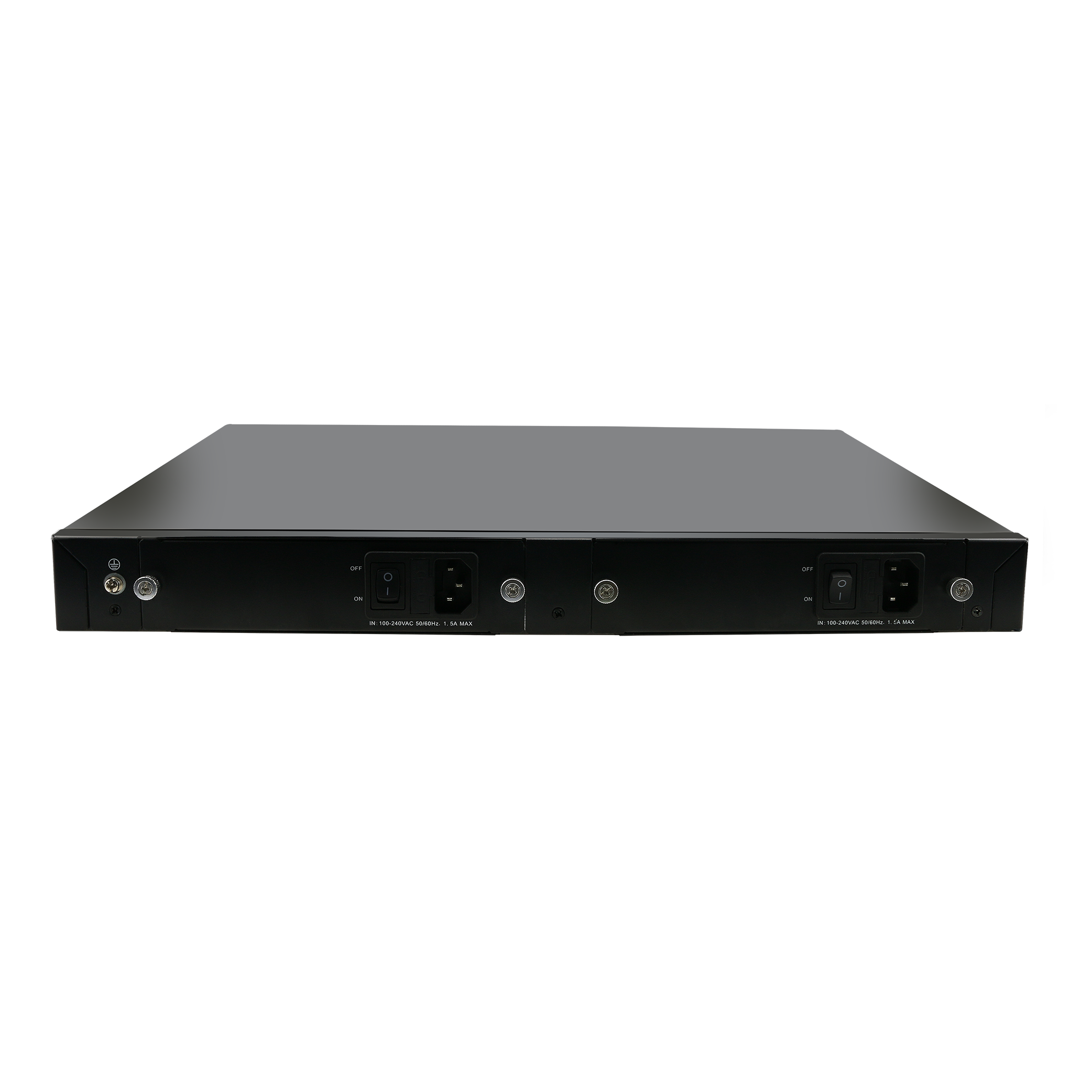

| Power Supply |
AC input: 100-240V AC, 50/60Hz
DC input: 36V-75V |
| Redundancy Design |
Optional dual power supply (supporting dual AC, dual DC, or AC+DC input) |
| Full Load Power Consumption |
<40W |
| Storage Environment |
Temperature: -10 to 70°C
Humidity: 10–90% (non-condensing) |
| Operating Environment |
Temperature: 0 to 45°C
Humidity: 10–90% (non-condensing) |
| Dimensions |
442mm×300mm×44mm (L×W×H) |
| Full Load Weight |
<4.5 kg |
| Feature |
Specification |
| VLAN |
4K VLAN entries
Port QinQ and flexible QinQ (StackVLAN)
VLAN based on port, MAC, protocol, and IP subnet |
| Spanning Tree |
Supports STP/RSTP/MSTP
Remote loop detection |
| MAC Management |
MAC black hole table
Port MAC address limit
8K MAC addresses |
| Port Control |
Bidirectional bandwidth control
Port mirroring |
| Feature |
Specification |
| Multicast |
Supports IGMPv1/v2/v3
IGMP Snooping/Proxy
IGMP filtering
PIM-SM sparse mode multicast protocol |
| Routing Protocols |
Supports BGP, RIP, MPLS, OSPF |
| QoS |
Port/custom flow rate limiting
802.1P/DSCP priority marking
Advanced queue scheduling based on port/flow
4 priority queues with WRR, SP, and FIFO algorithms
Congestion avoidance mechanisms |
| Feature |
Specification |
| User Security |
Anti-ARP-spoofing protection
Anti-ARP-flooding attack suppression
MAC address binding to port
TACACS+ authentication |
| Device Security |
Control layer protection against CPU-targeted DOS attacks and viruses
Restricted IP address login
User privilege hierarchy to prevent unauthorized access |
| Network Security |
Manual binding of IP address, VLAN ID, MAC address, and port
Port broadcast/multicast suppression and auto-shutdown of risky ports
L2-L7 ACL flow filtering (80-byte header inspection)
Dynamic ARP table one-click binding
DHCP Option82 and PPPoE+ for user location information upload |
| Feature |
Specification |
| Interfaces |
CLI, Console, Telnet |
| Monitoring |
RMON 1,2,3,9 groups MIB |
| Management |
WEB management
SNMPv1/v2/v3
NTP network time protocol
NMS3000 network management platform |
| Model |
Product Description |
| RL8004ES |
4×EPON, 4×GE ports, 4×10G SFP+, dual power supply, OLT central office device |
| RL060PWRAC |
60W AC power module |
| RL060PWRDC |
60W DC power module |
Ordering Information
| Model |
Product Descriptions |
| RL8004ES |
EPON OLT，4EPON+4GE RJ45+2GE SFP+2*10G SFP |
