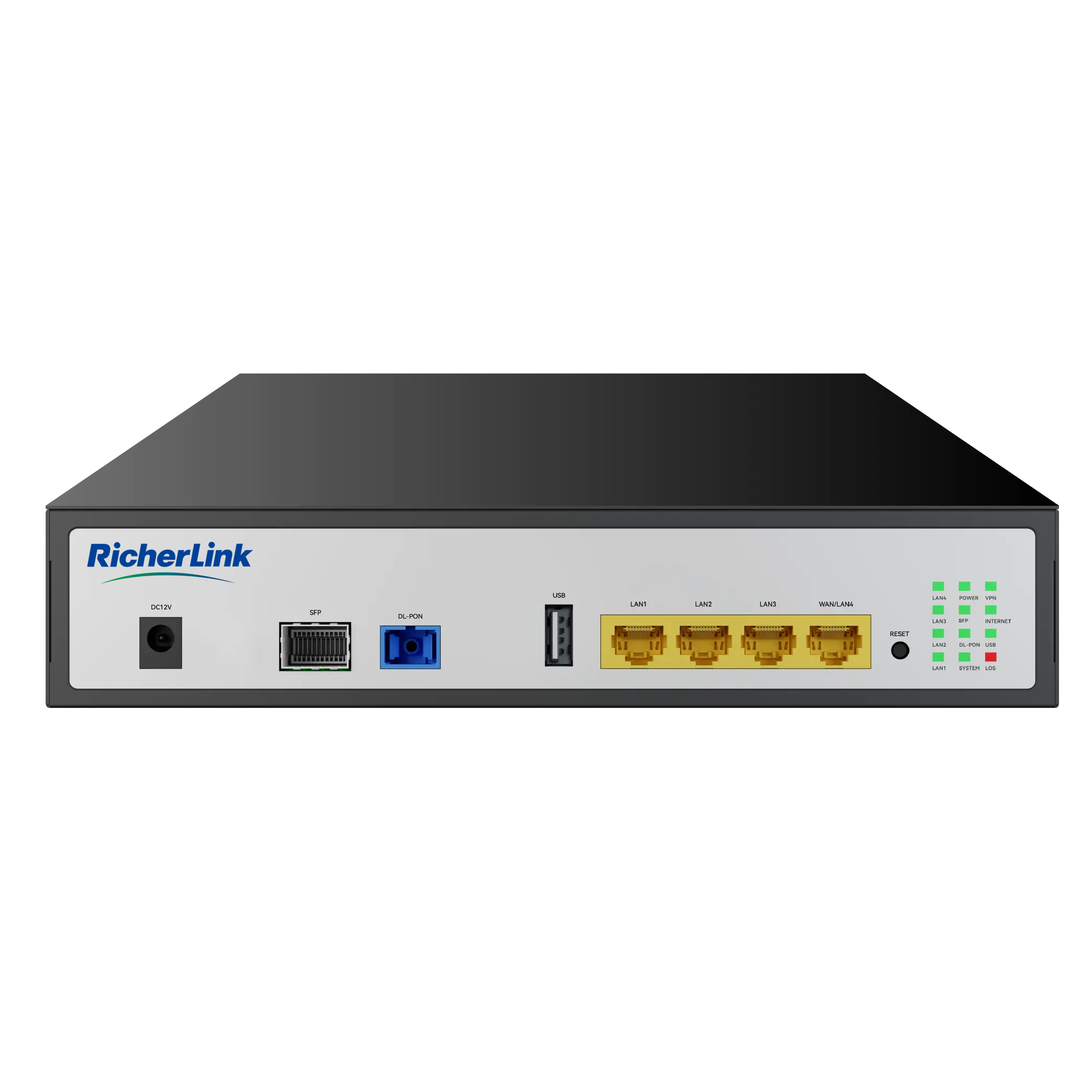

RL8001GR

FTTR Master，1*SFP, 1*GPON OLT+4*GE(LAN4/WAN)+1*USB

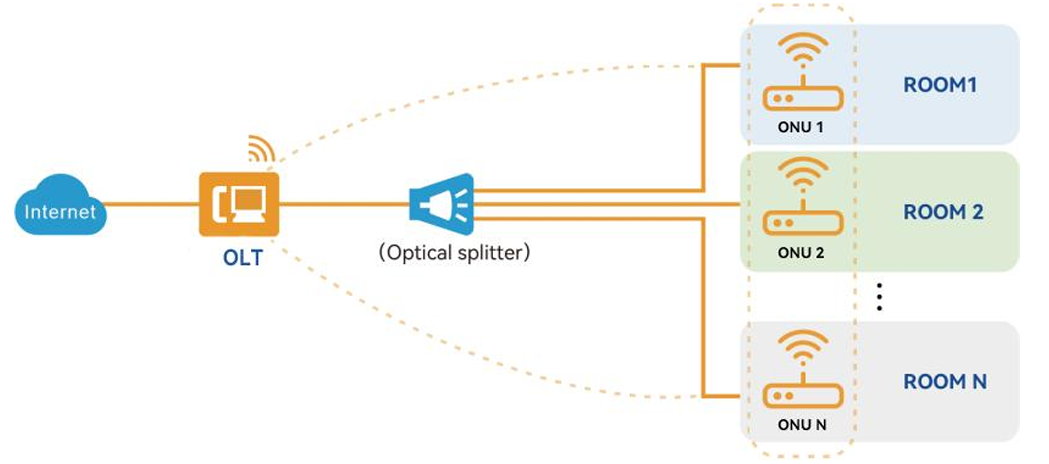

The RL8001GR is an optical gateway product developed to meet the needs of enterprise all-optical network construction. It features high reliability, excellent QoS guarantee, manageability, scalability, and flexible networking, enabling all-optical network access for enterprises. Working with ONUs, it achieves full optical network coverage in enterprises. Suitable for deployment in network environments such as small and medium-sized enterprises, commercial buildings, schools, and hospitals, it effectively meets users’ high-speed broadband access requirements.

Hardware Specifications

Network-Side Interface	User-Side Interface
1×SFP (GPON/XGPON/XGS-PON/10GE/GE)	1×GPON, 4×GE, 1×USB
Power Supply	Power Consumption
External power adapter DC12V/1.5A	<18W
Operating Temperature	Operating Humidity
-20°C ~ +60°C	10% ~ 95% (non-condensing)
Dimensions	Net Weight
220×145×44mm (L×W×H)	<800g

Interface Parameters

Interface Type	Interface Parameters
Network-side interface	1×SFP interface Supports GPON/XGPON/XGS-PON/10GE/GE SFP modules
User-side PON port	1×GPON Interface type: SC/UPC or SC/APC GPON parameters: Output power: 1.5dBm~5dBm Receiver sensitivity: -8dBm~-28dBm
LAN interface	RJ45 interface 4×GE ports
USB	USB 2.0

Product Functions

Layer 2 Services	Layer 3 Services
– VLAN management – Loop detection – DHCP Option82 – BPDU passthrough	– PPPoE Client/Static IP/DHCP Server/DHCP Client – IPv4, IPv6, IPv4/IPv6 dual stack – Port mapping – ALG, UPnP, DDNS, DMZ – NAT/NAPT – Static routing/default routing – Multi-service convergence
Multicast	QoS
– IPv4/IPv6 multicast	– QoS rate limiting
AC Management	Operation & Management
– Manage and configure Wi-Fi	– OMCI/Web UI/TR069/Cloud NMS (optional)
Security	VPN
– Firewall – Anti-DOS attack – MAC/IP/URL address filtering	– L2TP VPN – IPSec VPN
Service Interconnection	Enterprise Network
– GPON/XGPON/XGS-PON/10GE/GE upstream – Easy Mesh networking/AC management	– Supports all-optical enterprise Wi-Fi coverage – Fiber optic cables are free from electromagnetic interference and offer low latency – Visual management of enterprise n

Ordering Information

Model	Product Descriptions
RL8001GR	FTTR Master，1SFP, 1GPON OLT+4GE(LAN4/WAN)+1USB
