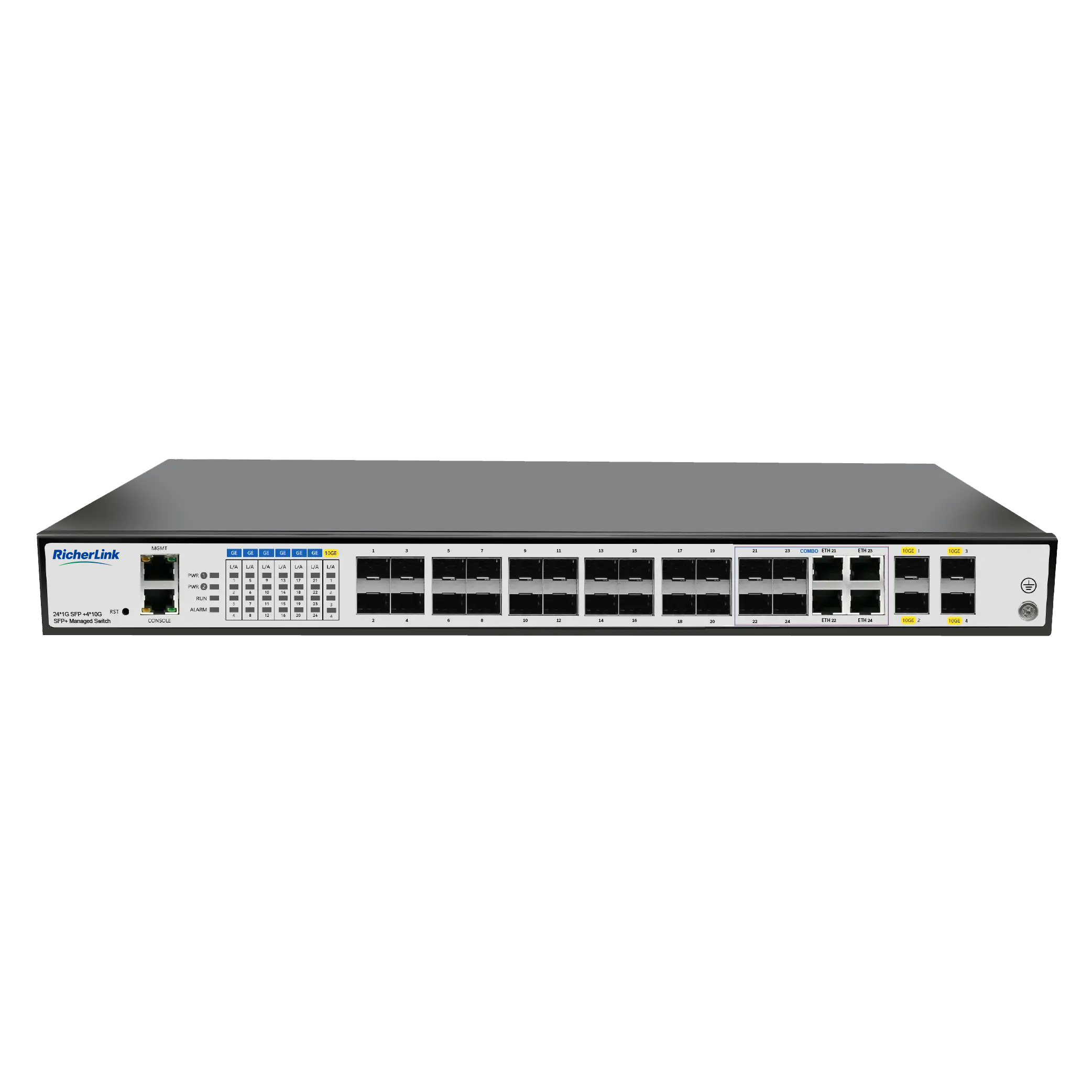

4-port RJ45/SFP combo + 20-port SFP + 4-port SFP+ 10 Gigabit Ethernet Switch,Redundant dual power. Product Features:
1、 SFP+ uplink
2、Supported TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSHv2
3、Supported ERPSv1, STP/RSTP and MSTP
4、 Easy network management by web browser, CLI, Telnet/serial console
The RL-S8328XF Series are equipped with SFP+ uplink Ethernet Switch. The switches are ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) to provide home users with triple-play services with up to Gigabit bandwidth. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks. The S5700 series switches are packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, as well as static routing capabilities.
Product Specifications
| Items | RL-S8328XF | |
| PORT | 10/100/1000M BASE-TRJ45 | 4 ports combo |
| 1GSFP | 20 ports+4 Ports combo | |
| 10GSFP+ | 4 ports | |
| GE out-of-band
management ports |
1 | |
| console RJ45 ports | 1 | |
| Power over Ethernet | N/A | |
| Performance | Flash memory | 256M Byte |
| DDRIII capacity | 512M Byte | |
| MAC address table size | 16K | |
| ARP table size | 1K | |
| Jumbo frames | 9KB | |
| Switching capacity | 84Gbps | |
| Auto-negotiation | Yes | |
| Auto-MDI/MDIX | Yes | |
| Power supply | Input range | 100-240VAC
Redundant dual power |
| System power consumption | 60W | |
| LED | Port LED | Green: link/active |
| Mechanical | Dimension(Wx D x H) mm | 440*365*44 |
| Environment | Operating Temperature | 0º to 50ºC |
| Storage Temperature | -40º to 70ºC | |
| Operating Humidity
(non-condensing) |
10% to 90% | |
| Storage Humidity
(non-condensing) |
10% to 90% | |
| Certifications | FCC ClassA | Yes |
| CE | Yes | |
| Safety Compliance: CB | Yes | |
| Safety Compliance: UL | Yes | |
Software Specification
| Items | RL-S8328XF | |
| L2 Faetures | VLAN | IEEE 802.1QVLAN;
IEEE 802.1v Protocol-based VLAN; Port-based VLAN; IP Subnet-based VLAN, MAC-based VLAN, Voice VLAN; GVRP; QinQ |
| Link aggregation | Static link aggregation;
IEEE 802.3ad with LACP; Unicast/Multicast load balance over trunk port |
|
| Redundancy Protocols | ERPSv1;
STP/RSTP and MSTP |
|
| ACL | L3/L4, StatisticsACL
VLANACL, GlobalACL; IPv4/IPv6/MAC/ARPACL |
|
| QOS | Trafic Classification (802.1p/ToS/port/DifServ);
SP, WRR, SP+WRR; 8 queues/port of Priority Queues |
|
| IGMP | IGMPv1v2v3, IGMP Snooping | |
| Storm Control | Broadcast/Multicast/ Unknown Unicast Storm Control | |
| Security | RADIUS/ TACACS+, IEEE 802.1X;
Port authentication, MACAuthentication bypass; DHCP Snooping (Option 82), IP Source guard, DoS Protection; HTTPS and SSL |
|
| IPv6 | IIPv4/IPv6 Dual Protocol Stack;
IPv6 Neighbor Discovery; IPv6 Neighbor Discovery Snooping; IPv6 DHCP client, IPv6 DHCP Snooping; MVRover IPv6、SNMP over IPv6、HTTP over IPv6、SSH over IPv6、Telnet over IPv6 |
|
| Management | CLIvia console port or Telnet, Web management, SNMPv3;
RMON (groups 1, 2, 3 and 9); MIB II; DHCP client, DCHP Relay, DHCPdynamic provision option 66,67 FTP/SFTP/TFTP client; SNTP/NTP; NTP; LLDP; OAM; UDLD; SMTP; sFlow; MLDv1/v2; MLD snooping; ping; Traceroute; syslog |
|
| L3 Faetures | Routing | Static Unicast Routes
OSPF RIP |
Ordering information
| Model | Description |
| RL-S8328XF | 4-port RJ45/SFP combo + 20-port SFP + 4-port SFP+ 10 Gigabit Ethernet Switch,Redundant dual power. |
