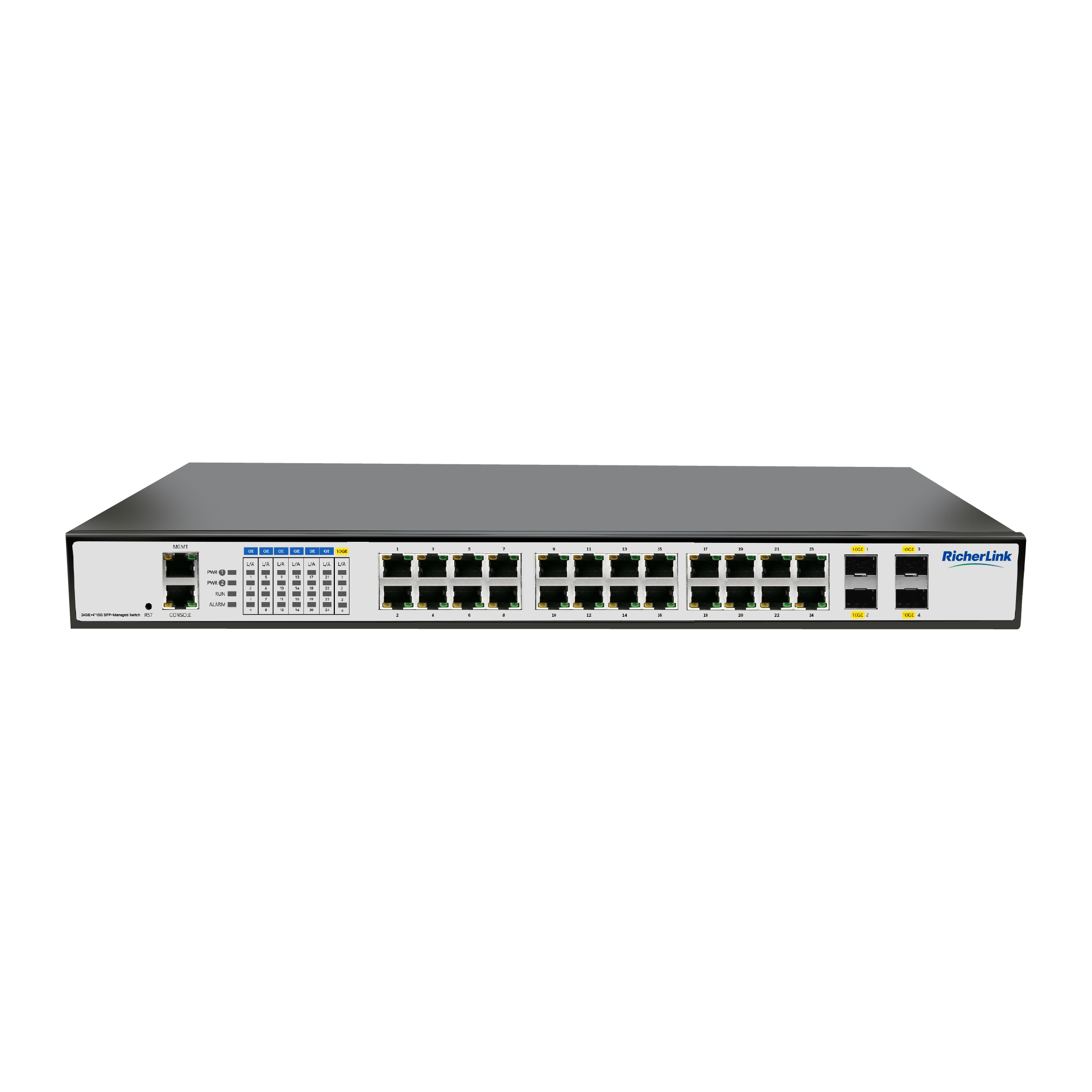

RL-S8228XT

24-port RJ45 + 4-port SFP+ 10 Gigabit Ethernet Switch，Redundant dual power. Product Features：

1、Dynamic routing and static routing

2、Supported Static Unicast Routes, RIP, OSPF

3、Supported ERPSv1, STP/RSTP and MSTP

4、Easy network management by web browser, CLI, Telnet/serial console

The RL-S8228XT Series are L2+ equipped with SFP+ uplink Ethernet Switch. The switches are ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) to provide home users with triple-play services with up to Gigabit bandwidth. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks. The S5600 Series switches are packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, as well as static routing and dynamic routing capabilities.

Product Specifications

Items		RL-S8228XT
PORT	10/100/1000M BASE-T RJ45	24 ports
	1G SFP	N/A
	10G SFP+	4 ports
	GE out-of-band management ports	1
	console RJ45 ports	1
	Power over Ethernet	N/A
Performance	Flash memory	256M Byte
	DDRIII capacity	512M Byte
	MAC address table size	16K
	ARP table size	1K
	Jumbo frames	9KB
	Switching capacity	84Gbps
	Auto-negotiation	Yes
	Auto-MDI/MDIX	Yes
Power supply	Input range	100-240VAC Redundant dual power
Power supply	System power consumption	45W
LED	Port LED	Green: link/active
Mechanical	Dimension (W x D x H) mm	440 * 280 * 44
Environment	Operating Temperature	0º to 50ºC
	Storage Temperature	-40º to 70ºC
	Operating Humidity (non-condensing)	10% to 90%
	Storage Humidity (non-condensing)	10% to 90%
Certifications	FCC Class A	Yes
	CE	Yes
	Safety Compliance: CB	Yes
	Safety Compliance: UL	Yes

Software Specification

Items		RL-S8228XT
L2 Faetures	VLAN	IEEE 802.1Q VLAN; IEEE 802.1v Protocol-based VLAN; Port-based VLAN; IP Subnet-based VLAN, MAC-based VLAN, Voice VLAN; GVRP; QinQ
	Link aggregation	Static link aggregation; IEEE 802.3ad with LACP; Unicast/Multicast load balance over trunk port
	Redundancy Protocols	ERPSv1; STP/RSTP and MSTP
	ACL	L3/L4, Statistics ACL VLAN ACL, Global ACL; IPv4/IPv6/MAC/ARP ACL
	QOS	Traffic Classification (802.1p/ToS/port/DiffServ); SP, WRR, SP+WRR; 8 queues/port of Priority Queues
	IGMP	IGMP v1v2v3, IGMP Snooping
	Storm Control	Broadcast/Multicast/ Unknown Unicast Storm Control
	Security	RADIUS / TACACS+, IEEE 802.1X; Port authentication, MAC Authentication bypass; DHCP Snooping (Option 82), IP Source guard, DoS Protection; HTTPS and SSLv3
	IPv6	IPv4/IPv6 Dual Protocol Stack; IPv6 Neighbor Discovery; IPv6 Neighbor Discovery Snooping; IPv6 DHCP client, IPv6 DHCP Snooping; MVR over IPv6、SNMP over IPv6、HTTP over IPv6、SSH over IPv6、Telnet over IPv6
	Management	CLI via console port or Telnet, Web management, SNMPv3; RMON (groups 1, 2, 3 and 9); MIB II; DHCP client, DCHP Relay, DHCP dynamic provision option 66,67 FTP/SFTP/TFTP client; SNTP/NTP; NTP; LLDP; OAM; UDLD; SMTP; sFlow; MLDv1/v2; MLD snooping; ping; Traceroute; syslog
L3 Faetures	Routing	Static Unicast Routes;

Ordering information

Model	Description
RL-S8228XT	24-port RJ45 + 4-port SFP+ 10 Gigabit Ethernet Switch，Redundant dual power.
