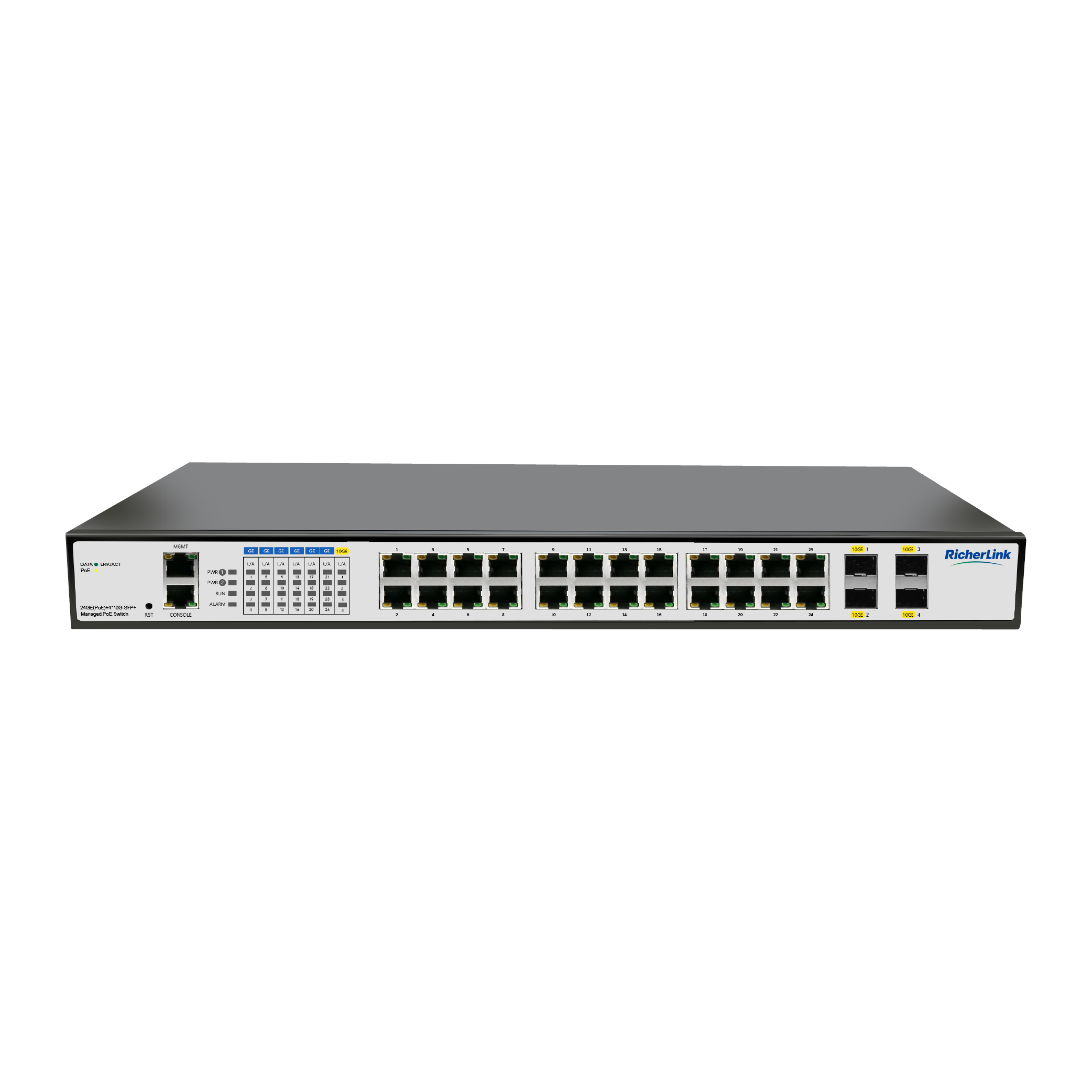

RL-S8228XP

24-port RJ45 + 4-port SFP+ 10 Gigabit Ethernet Switch with PoE/PoE+. Redundant Dual ACDC Power Supply. Product Features：

1、SFP+ uplink

2、IEEE802.3af/at standard

3、Supported TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSHv2

4、Supported ERPSv1, STP/RSTP and MSTP

5、Easy network management by web browser, CLI, Telnet/serial console

The RL-S8228XP is equipped with SFP+ uplink Ethernet Switch. The switches are ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) to provide home users with triple-play services with up to Gigabit bandwidth. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks. The RL-S8228XP is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, as well as static routing capabilities.

Product Specifications

Items		RL-S8228XP
PORT	10/100/1000M BASE-T RJ45	24 ports
	1G SFP	N/A
	10G SFP+	4 ports
	GE out-of-band management ports	1
	console RJ45 ports	1
	Power over Ethernet	IEEE802.3af/at, 370W power budget
Performance	Flash memory	256M Byte
	DDRIII capacity	512M Byte
	MAC address table size	16K
	ARP table size	1K
	Jumbo frames	9KB
	Switching capacity	84Gbps
	Auto-negotiation	Yes
	Auto-MDI/MDIX	Yes
Power supply	Input range	100-240VAC 50-60Hz
Power supply	System power consumption	425W
LED	Port LED	Green: link/active Yellow: PoE
Mechanical	Dimension (W x D x H) mm	440 * 400 * 44
Environment	Operating Temperature	0º to 50ºC
	Storage Temperature	-40º to 70ºC
	Operating Humidity (non-condensing)	10% to 90%
	Storage Humidity (non-condensing)	10% to 90%
Certifications	FCC Class A	Yes
	CE	Yes
	Safety Compliance: CB	Yes
	Safety Compliance: UL	Yes

Software Specification

Items		RL-S8228XP
L2 Faetures	VLAN	4K VLANs； IEEE 802.1Q VLAN； Port-based VLANs； Protocol-based VLANs； IP subnet-based VLANs MAC-based VLANs ； QinQ；
	Link aggregation	Static link aggregation； IEEE 802.3ad ； LACP； IP address and MAC address-based load balancing policies ；
	Redundancy Protocols	Eppes； Stopp/Rustop/Meestep； Flex Link； Monitol Link； Distal loop detection；
	ACL	Standard and Extended ACLs； TimeRange-based ACLs Traffic classification and flow definition based on IP header information, such as source/destination MAC addresses, VLANs, 802.1p, ToS, DiffServ, source/destination IP addresses, TCP/UDP port numbers, and protocol types； IPv4/IPv6 ACL
	QOS	TLimit the speed of receiving and sending packets based on ports or custom streams； Message mirroring and redirection based on port or custom flow； Priority marking based on port or custom flow, and providing Remark capability for 802.1P and DSCP priorities； VLAN rewriting and insertion based on port or custom flow； Advanced queue scheduling based on port or custom flow, supporting 8 priority queues per port, providing queue scheduling algorithms such as SP, WRR, SP+WRR, etc；
	IGMP	IGMPv1/v2/v3 ；IGMP Filter；IGMP Fast leave； MVR multicast VLAN registration and cross-VLAN multicast replication；
	Storm Control	Broadcast/Multicast/Unknown Unicast Storm Control； Bidirectional bandwidth control of the port； Port mirroring； Real-time traffic statistics, utilization, and packet sending and receiving statistics on ports； 9K Jumbo ultra-long frame forwarding；
	Security	ARP-spoofing ；ARP-flooding；IP-Source-Guard；Port Isolation；IEEE 802.1x； SNMP v3；RADIUS/TACACS+； MAC address binding to port and port MAC address filtering； Defend against DOS attacks and virus attacks； SSHv2 Secure Shell； Telnet login and password mechanism for Security IP； Hierarchical user protection to prevent unauthorized users from unauthorized intrusion； ARP traffic detection based on the MAC address of each user； ARP packet suppression or user blocking based on ARP traffic detection； Manually bind parameters such as IP address, VLAN ID, MAC address, and port； L2-L7 ACL； Port broadcast/multicast packet suppression and automatic shutdown of dangerous ports； DHCP Option 82 and PPPoE+ tags upload the user’s physical location information； DHCP -Snooping；
	IPv6	IPv4/IPv6 dual stack； IPv6 neighbor discovery； IPv6 neighbors are found to be listening to IPv6 DHCP snooping； HTTP over IPv6、SSH over IPv6、Telnet over IPv6；
	Management	CLI, Console, Telnet, and SSH configuration management； WEB MANAGEMENT； SNMP V1/V2c/V3 management； RMON (Groups 1, 2, 3 & 9)；MIB II ；DHCP Client；FTP/TFTP；SNTP； LLDP； Ethernet OAM (802.3ah EFM and 802.1agCFM)； Ping、Traceroute； Syslog；
L3 Faetures	Routing	IPv4/IPv6 static routes

Ordering information

Model	Description
RL-S8228XP	24-port RJ45 + 4-port SFP+ 10 Gigabit Ethernet Switch with PoE/PoE+. Redundant Dual ACDC Power Supply
