16-Port Gigabit+2G Combo+2G SFP Managed PoE switch（16-Port PoE，Support IEEE802.3af/at Standard） Product Features：
1、Complies with IEEE802.3af/at Standard;
2、Support RJ45 Auto-MDI/MDIX;
3、Supports PoE Power up to 30W for each PoE port;
4、Auto detect power device;
5、Remote power and Data feeding up to 100m;
6、Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
7、Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az);
8、Highly reliable design, supporting traditional STP/MSTP/RSTP Layer 2 link protection technology;
9、Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup;
10、Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies; 11、Support PD-ALIVE function.

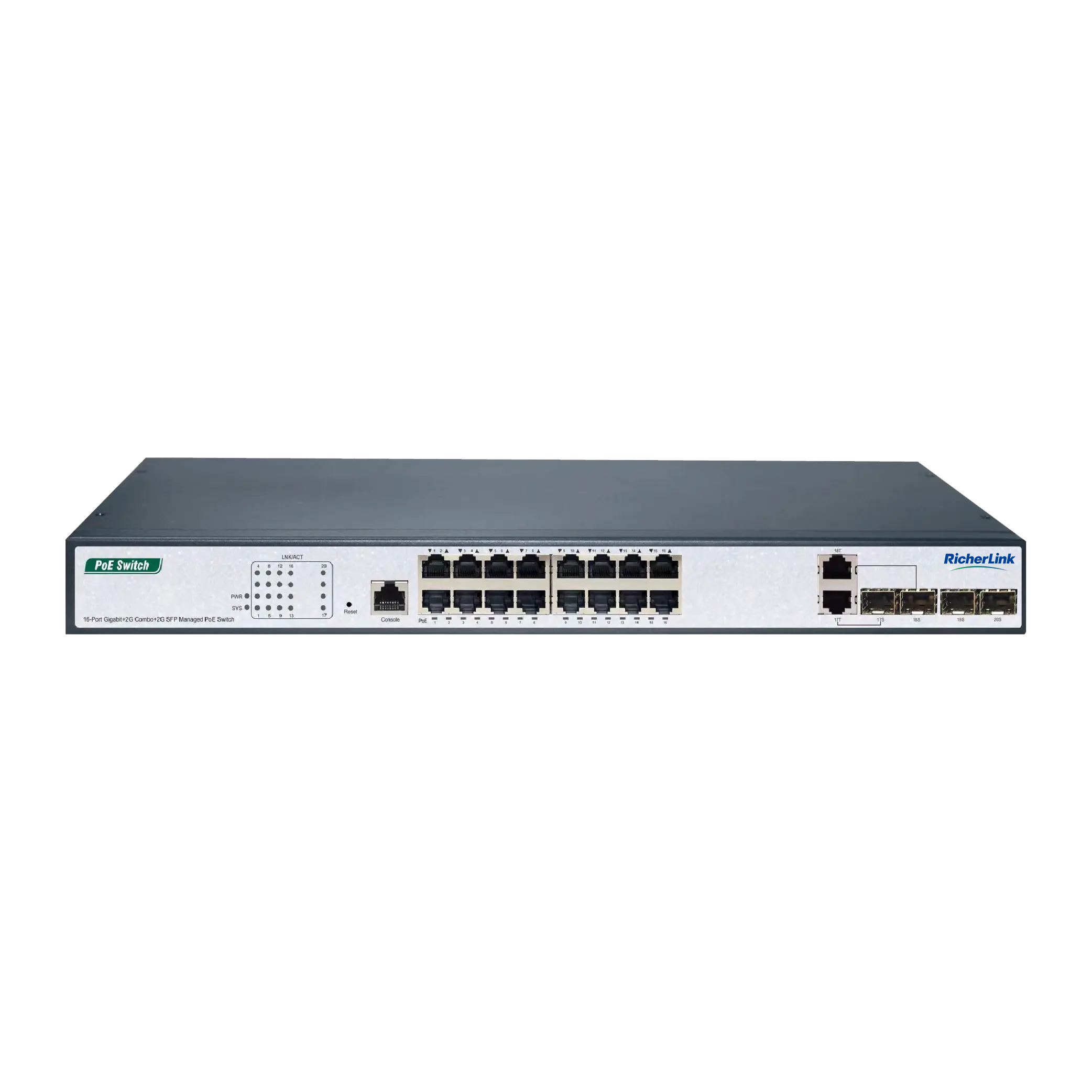

The RL-S8222P provides 16*10/100/1000Mbps RJ45 ports, 2*1000Mbps Combo ports and 2*1000Mbps SFP slots that supports IEEE802.3af/at Standard , with a total PoE power supply up to 250W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 2 SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. With all these advanced features, the PoE Switch is an ideal choice for small and medium business networking.
Product Specifications Hardware Specification
| Model | RL-S8222P |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q,
IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at |
| Interface | 16*10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
2*1000Mbps Combo ports 2*1000Mbps SFP Slots 1 Console Port |
| Indicator | PWR, LNK/ACT, PoE, SYS |
| Network Media | 10BASE-T: UTP category 3,4,5 cable（≤100m）
100BASE-TX: UTP category 5, 5e cable（≤100m） 1000BASE-T: UTP category 5e, 5 cable（≤100m） 100BASE-FX:MMF,SMF |
| MAC Address Table | 8K, Auto-learning, Auto-updating |
| Jumbo Frame | 9216Bytes |
| Packet buffer | 4.1Mbit |
| Transfer Mode | Store-and-forward |
| Packet Forward Speed | 29.76Mpps |
| Switching Capacity | 40Gbps |
| Dimensions(L*W*H) | 440*207*44mm |
| Fan Quantity | 2 |
| PoE Port | Port1~16 |
| PoE Power On RJ45 | Mode A 1/2（-），3/6（+） |
| PoE Power Output | Voltage：55V DC Power：30W（MAX） |
| PoE Power Budget | 250W |
| Power Supply | 280W |
| Input Power Supply | 100~240V AC， 50/60Hz |
| Operating Temperature | 0°C ~ 50 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Surge Protection | Common mode ±6KV Differential mode ±4KV； |
| MTBF | >50000 hour |
| Electrostatic Standard | Contact ±6KV，Air ±8KV |
| Green Energy Saving | Support IEEE 802.3az |
Software Specification
| spanning Tree | IEEE802.1D -Spanning Tree | |
| IEEE802.1w -Rapid Spanning Tree | ||
| IEEE802.1s -Multiple Spanning Tree | ||
| BPDU Guard | ||
| STP Root Guard | ||
| Loop Detection | ||
| VLAN | Management VLAN | |
| Private VLAN | ||
| Voice VLAN | ||
| Surveillance-VLAN | ||
| Q-in-Q (Double Tag) | ||
| 802.1v Protocol VLAN | ||
| MAC-Based VLAN | ||
| Port | IEEE 802.3ad witch LACP(Dynamic) | |
| Static Trunk | ||
| EEE | ||
| Jumbo Frame | ||
| Error-Disable | ||
| IGMP Snooping | IGMP Snooping v1/v2/v3 | |
| MLD Snooping v1/v2 | ||
| MVR | ||
| QoS Features | Hardware Queues | |
| Class Of Service | Port Based | |
| 802.1p | ||
| CoS | ||
| DSCP | ||
| IP Precedence | ||
| TCP/UDP (IPv4/IPv6) | ||
| Rate Limiting | Ingress | |
| Egress | ||
| Priority Queue Scheduling | WRR | |
| Strict Priority | ||
| DSCP & CS | ||
| IPv4 QoS (QCEs) | ||
| IPv6 QoS (QCEs) | ||
| Security | Port Security | |
| Port Isolation | ||
| IEEE802.1x AAA | ||
| ACLs | L2+/L3/L4 | |
| IPv6 Support | ||
| Management Access List | ||
| Management ACL/Management ACE | ||
| IP Source Guard (IP-MAC-Port-VALN Binding) | ||
| IP Source Guard (IP-MAC-Port Binding) | ||
| Dynamic ARP Inspection | ||
| Storm Control | ||
| RADIUS/TACACS+ | ||
| RADIUS Authentication (RFC2138) | ||
| DDoS Prevention | ||
| HTTPs and SSL (Secured Web) | ||
| SSH v1.5/v2.0 (Secured Telnet Session) | ||
| DHCP Snooping | ||
| Management | SNMP (v1, v2c, v3) | |
| RMON ( 1,2,3 & 9 groups) | ||
| Software Upgrade | ||
| Configuration Export/Import | ||
| DHCP | Client | |
| Option 82 | ||
| Option 66 | ||
| Option 67 | ||
| Event/Error Log | Syslog | |
| Management Access Filtering | Console | |
| SNMP | ||
| HTTP/HTTPS | ||
| Telnet | ||
| Port Mirroring | ||
| LLDP (IEEE802.1AB) | ||
| LLDP-MED | ||
| UDLD | ||
| DNS Client | ||
| Traceroute | ||
| Ping | ||
| Cable Test | ||
| DDMI | ||
| NTP/ SNTP (RFC2030) | ||
| IPv6 Support | Dual IPv6/IPv4 stack | |
| IPv6 Web/SSL | ||
| IPv6 SNTP (Simple Network Time Protocol) | ||
| IPv6 Telnet / SSH | ||
| IPv6 Ping/Traceroute | ||
| IPv6 TFTP | ||
| IPv6 RADIUS/TACACS+ | ||
| IPv6 SNMP | ||
| PoE Management | Port Config | |
| Alive Checking for PD | ||
| PoE Delay | ||
| PoE Schedule | ||
| ONVIF | ONVIF Deteciton | |
| ONVIF Server(NLM) | ||
Ordering Information
| Model | Product Information |
| RL-S8222P | 16-Port Gigabit+2G Combo+2G SFP Managed PoE switch（16-Port PoE，Support IEEE802.3af/at Standard） |
