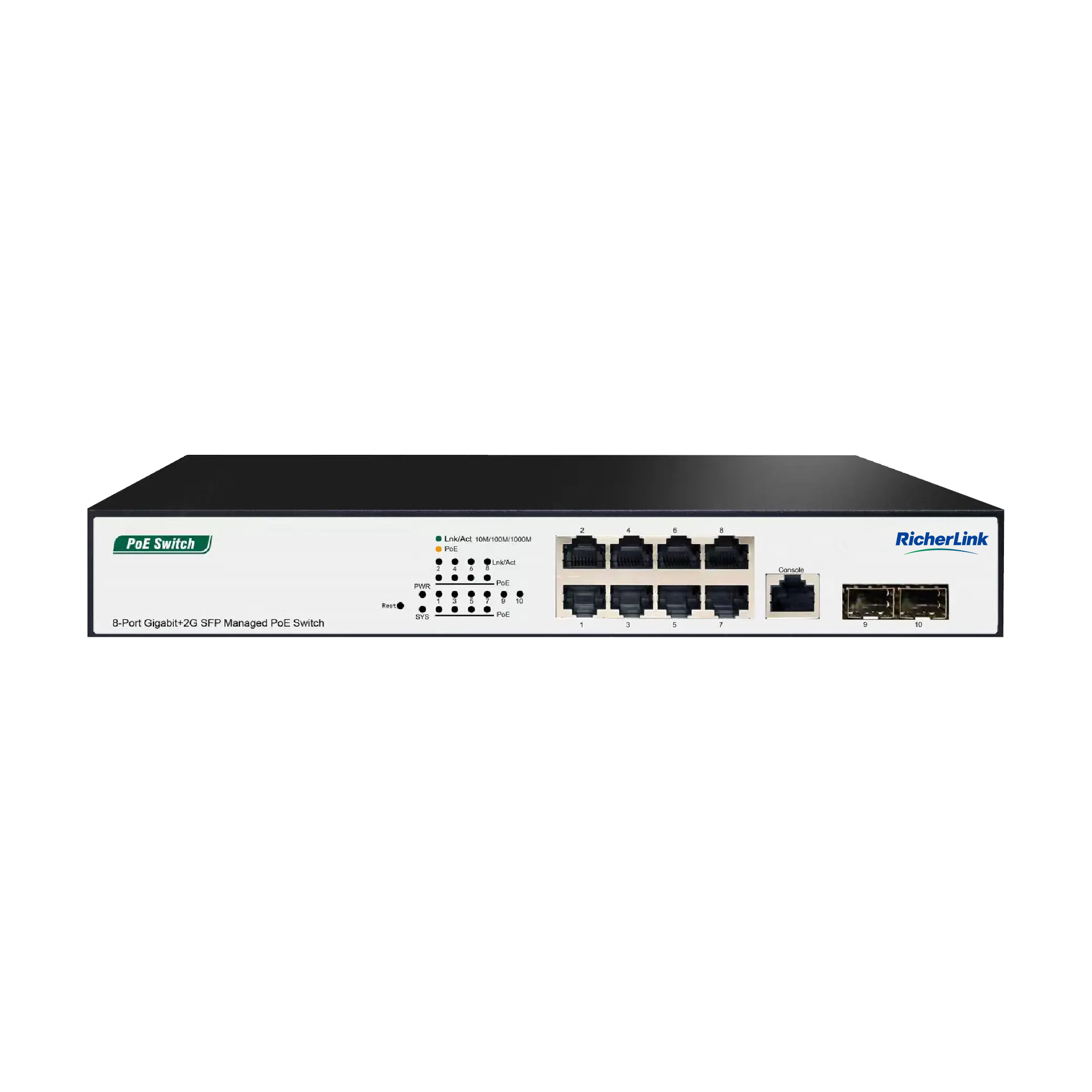

RL-S8210P

8GE(PoE)+2GE Managed PoE Switch Product Features：

1、Support IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;

2、Panel indicator to monitor working status and help fault analysis;

3、Perfect security mechanism;

4、wire-speed forwarding, intelligent identification;

5、Operating temperature: 0°C ~ 45°C.

RL-S8210P is a Web Smart Managed PoE Switch independently developed by Richer Link. It provides 8*10/100/1000Mbps RJ45 ports and 2*1000Mbps SFP slots. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding. Ports 1-8 have the PoE power supply function and comply with IEEE 802.3af/at standards. They can be used as Ethernet power supply devices to automatically detect and identify compliant power receiving devices and supply power to them through network cables. The storage and forwarding technology and dynamic memory allocation ensure that bandwidth is effectively allocated to each port.

RL-S8210P is easy to use and can flexibly expand home and office networks without limitation of power line layout. It is easy to manage and maintain and meets the requirements of different scenarios

Product Specifications

Model	RL-S8210P
Interface	810/100/1000Mbps RJ45 Ports 21000Mbps SFP Slots
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1q,IEEE 802.1p, IEEE802.3af,IEEE802.3at
Network Media(Cable)	10BASE-T: UTP category 3, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable(≤100m)
PoE Port	Port1~8
PoE Port Output	30W
Input Voltage	AC 100-240V 50/60Hz
PoE Power Budget	120W
Power Input	130W
RJ45 PoE Power Supply	Mode A 1/2(+)3/6(-)
Transfer Mode	Store-and-forward
Switching Capacity	20Gbps
MAC Address Table	8K, Auto-learning, Auto-aging
jumbo Frame	9216Byte
Packet Buffer	4.1M bit
Packet Forward Speed	14.88Mpps
Operating Temperature	0°C ~ 40 °C
Storage Temperature	-40 °C ~70°C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
*Dimensions(LWH)*	22015044mm
Fan Quantity	1
Surge Protection	Differential mode ±2KV , Common mode ±4KV
MTBF	>50000 hour
Electrostatic Standard	Contact ±6KV , Air ±8KV

Software Specification

Function menu	Functional description	Added
Basic	Login authentication and logout
	Bilingual (Chinese-English Switching)
	Port Pannel(two colors distinguish speed)	1000M green
	Port Pannel(two colors distinguish speed)	100M/10M orange-yellow
System Settings	Device Info	Hostname
		Device Contact
		Device Location
	IP Settings	Static
		DHCP Client
		DNS
	Web Settings	Web timeout settings
	Telnet Settings	Enable/disable telnet, support telnet timeout setting
	User Management	Password must contain at least letters&Number length is not less than 6
	Upgrade	Local Upgrade
	Device Management	Reboot
		Save Configure
		Restore
Monitoring	Port Statistics
	Cable Diagnostics
	Loop Guard	rlpp
	IGMP Snooping	Flood/Drop
	IGMP Snooping	DIP Mode
Switch Settings	Port Settings	Status
	Port Settings	Speed/Duplex/Flow Control
	Port Mirroring	In/Out/All
	Port Isolation
	Jumbo Frame	Support 1522-10000 Bytes
	Green Enable
	Static MAC
	Filter MAC
	Search MAC
	MAC List	Classified display static/dynamic mac address
	DHCP Snooping
VLAN Settings	VLAN Member
VLAN Settings	VLAN Settings	Access、Trunk
QOS Settings	Port Rate
	Storm Control
	QoS Priority Mapping	Support CoS and DSCP priority mapping
	QoS Queue Scheduling	Support 8 queue, Support SP and WRR Queue Scheduling
PoE Settings	PoE Basic Settings	Support enabled/disabled PoE port
		Force Power
		PoE Port Limit
	PD Alive
Cloud Settings	Cloud Settings	MQTT(Need Function Customization)

Ordering Information

Model	Product Information
RL-S8210P	8GE(PoE)+2SFP Web Smart PoE Switch
