RL801G GPON ONU modem

Key Benifits and Features

  • ITUG.984 GPON compliant
  • SFU  or HGU Mode
  • Multiple Management Options
  • Compatible with Main OLT Vendor

RicherLink RL801G GPON ONU modem Overview

By introducing latest fiber GPON(Gigabit-Capable PON) access technology, The RicherLink RL801G GPON ONU modem brings carrier class high-end networking solution for advanced triple play services. It compliant with ITU-T G.984 standard,  Layer 2/3, RL804GW GPON ONU modem support the comprehensive triple-play services, including data, video (IPTV or VoD), and high-speed internet access service.

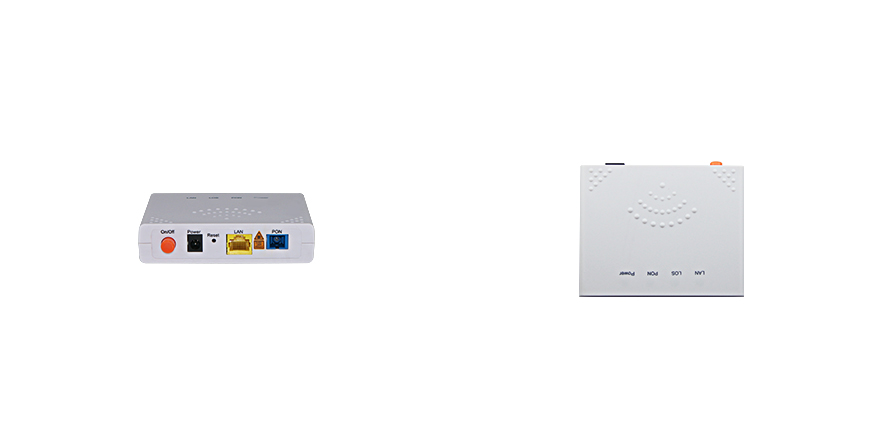

Figure 1: RicherLink RL801G GPON ONU modem

GPON ONU modem


Product Specification

 Physical specifications

 GPON Interface
 Rate  Upsteam: 1.244Gbps Downsteam: 2.488Gbps
 Interface standard  ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
 Launch power  Min: 0dBm   Max: +5dBm
 Sensitivity  -27dBm
 Input Power Overload  -8dBm
 Service Interface
 GPON Interface  1 GPON Port
 Data Interface  1 GE
 Environmental conditions
 Storage  temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
 Operation  temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
 Power Supply and Consumption
 Power Adaptor  Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 0.5A
 Consumption  ≤4W
 Physical specifications
 Dimensions  108mm×85mm×26mm(L×W×H)
 Weight  0.20KG

 Key Feature Support on  RL801G

 Features  RL801G
 GPON Features  Compliant with ITU-T G.984 GPON standard
 FEC (Forward Error Correction) in both upstream and downstream
 QoS scheduling based on SP or WRR between GEM port and T-CONT
 Downstream multicast GEM port and broadcast GEM port
 Ethernet Feature  Support Auto-speed and MDI/MDIX auto detection
 Internal L2 switch
 Advanced data processing function,Such as VLAN label processing, flow classification
 Gateway Feature  WAN support Router and Bridge mode
 Router mode supports PPPoE/DHCP/ static IP
 WAN support Internet、VoIP、IPTV、TR069
 LAN supports DHCP and static IP
 Support NAT and NAPT
 OAM Feature  Standard OMCI (the embedded operations channel)compliant with ITU-T G.988
 Compliant with TR-069 standard
 Compliant with TR-098、TR-140 terminal integrated management interface
 Alarm reporting, performance monitoring

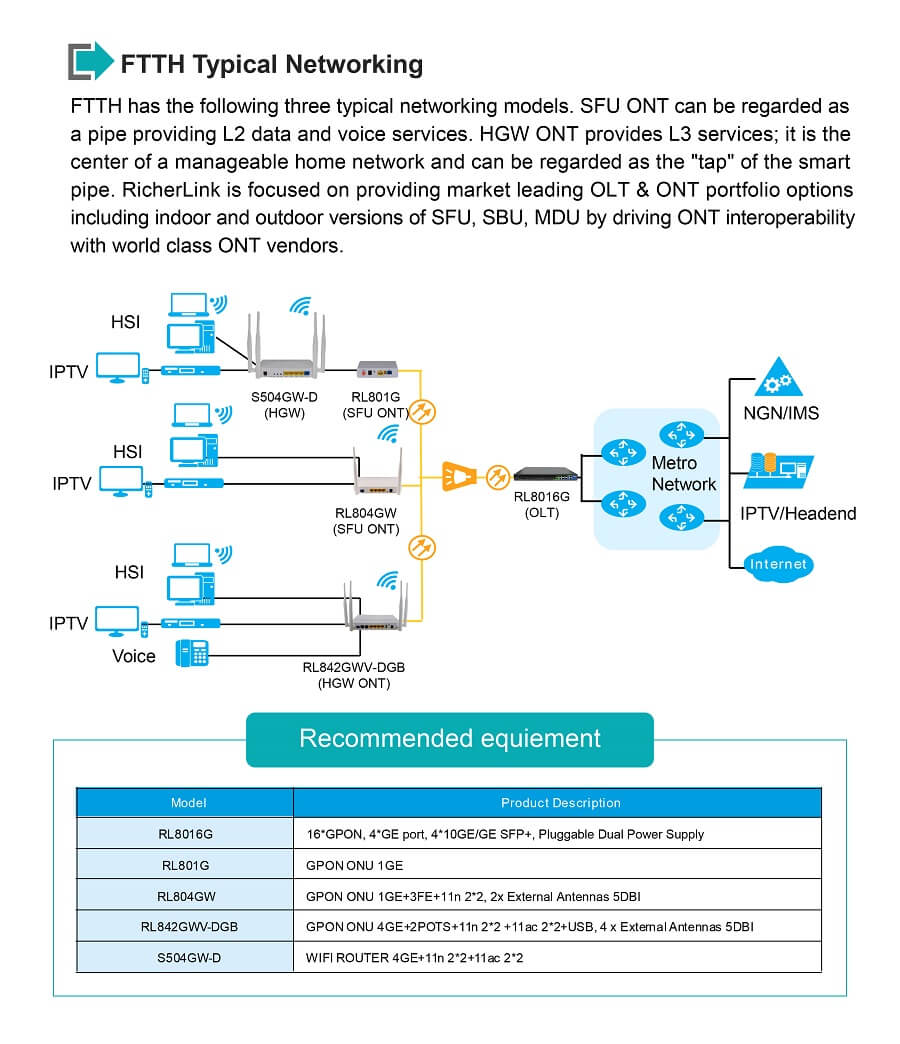

RL801G GPON ONU module Networking

Ordering Information

 Model  Product Description
