RL804GS

Key Benifits and Features

  • Support TR069,NAT,DMZ,DNS features
  • Support Multiple VLAN
  • Support CAS,L2oGRE
  • Support IPV6 ,PPPoE, DHCP and Static IP configuration for WAN Interface
  • Support IP, MAC filtering, Firewall Functionality in routed mode
  • Support for XPON, adaptive EPON or GPON OLT on the network



RicherLink RL804GS Router Overview

RL804GS terminal equipment is designed to meet the needs of FTTH / FTTO and triple play services of fixed network operators or cable operators. It adopts mature Gigabit GPON technology and provides 4 GE ports. It has the characteristics of high reliability, QoS guarantee, manageability, flexible expansion and networking. It has high cost performance and is the leading MDU ONU equipment in the industry. Fully comply with ITU-TG.984. X and other technical specifications and technical requirements of China Telecom GPON equipment (v2.1 and above).

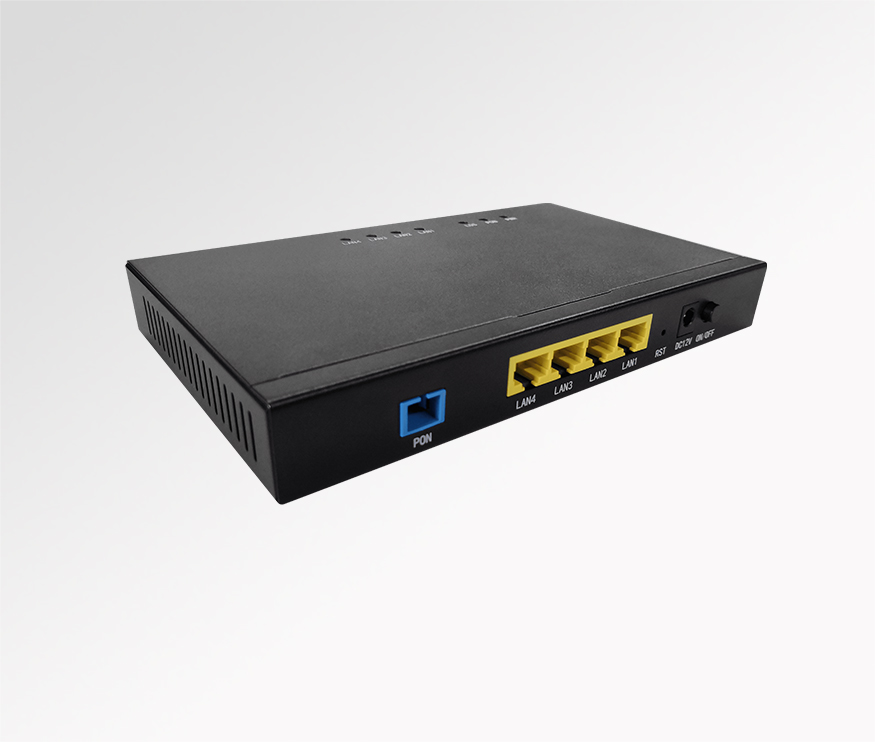

Figure 1: RicherLink RL804GS  Router

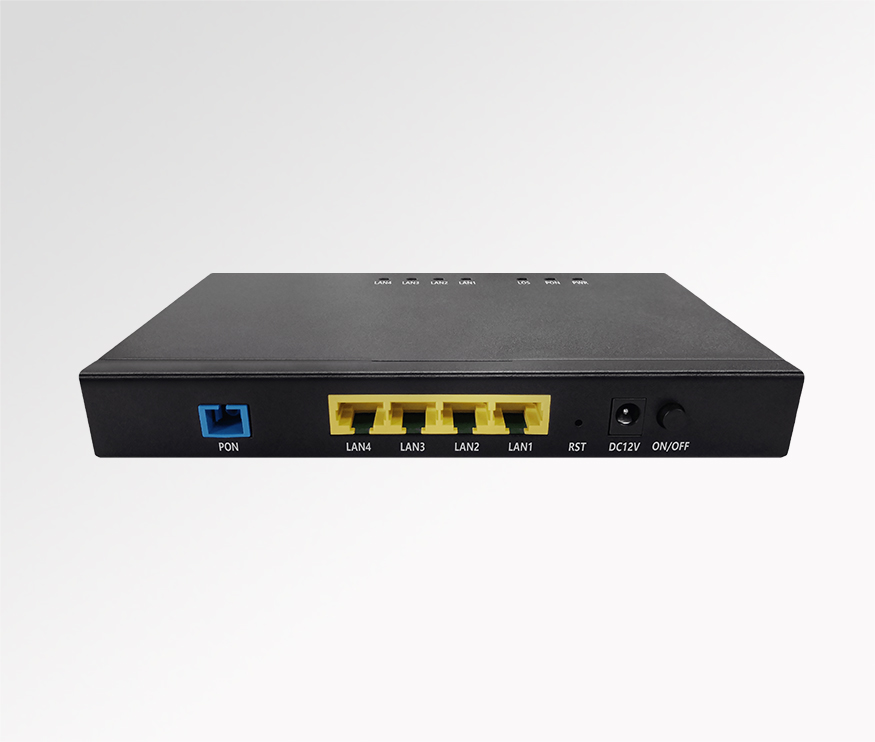

Description RL804GS equipment Interface

Port Type Function
PON Connect PON port with internet by SC type, single mode optical fiber cable
LAN RJ45 Port connects to local internet, 4 GE port automatically
RESET Press down reset button and keep 5 seconds to make the device restart and recover from the factory default Settings.
POWER (DC 12V) Connect with power adapter
ON/OFF Power turn on/off

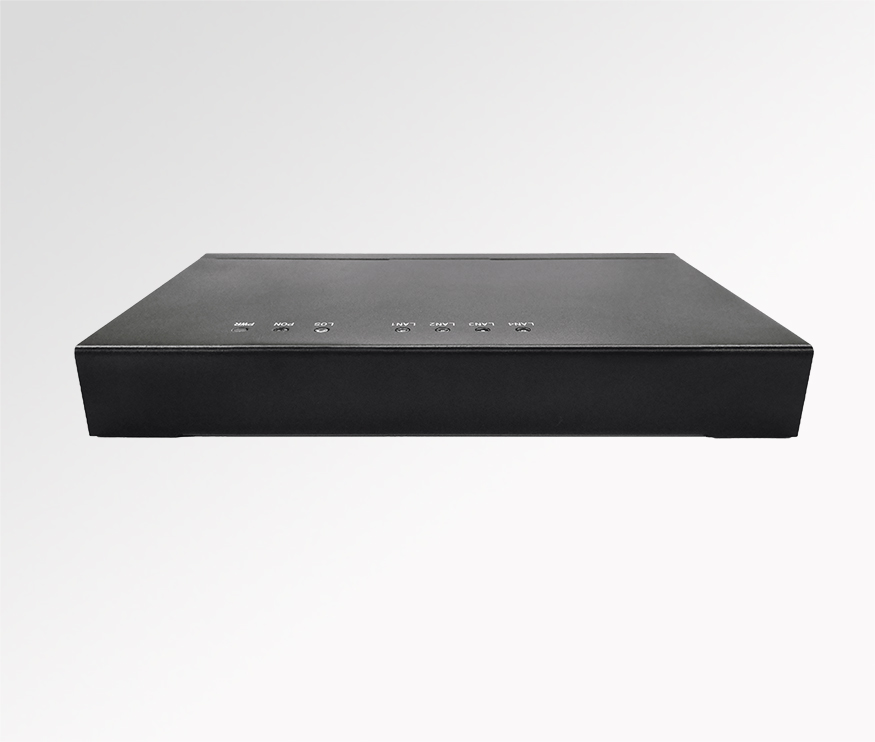

Indicators of device

Indicators status Description
PWR Light on ONU power supply normally
Light off ONU no power supply
PON Light on ONU gateway registered
Blink ONU manage to link
Light off ONU not registered
LOS Blink Received optical power is lower than the sensitivity of the optical receiver.
Light off Received optical power is normal
LAN 1 Light on network port linked, but no data transmitting
Blink network port data pass
Light off ONU no power supply or internet cable unlink
LAN2 Light on network port linked, but no data transmitting
Blink network port data pass
Light off ONU no power supply or internet cable unlink
LAN3 Light on network port linked, but no data transmitting
Blink network port data pass
Light off ONU no power supply or internet cable unlink
LAN4 Light on network port linked, but no data transmitting
Blink network port data pass
Light off ONU no power supply or internet cable unlink

specification and working environment

Parameter Nominal
Dimension 175mm×125mm×31mm(L×W×H)
Net weight 0.4kg
Typical power consumption <5W
Noise None
Cooling style Naturally cooling
Power supply 12V DC(By external AC/DC adapter)
Installation style Support PC, wall mount or put inside of information box.
Environment -5~50℃
Atmospheric pressure 70~106Kpa
MTBF 50,000hours
MTTR 30minutes
Parameter Nominal

Interface Specifications

Parameter Nominal
Connector style SC/PC
PON quantity 1
Fiber style Single mode
Wavelength TX:1310 +/-20nmRX:1490 +/-10nm
PON interface standard ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
PON interface receiving rate 2.488Gpbs
PON interface transmitting rate 1.244Gpbs
Output optical power Min: 0.5dBm        Max: +5dBm
Opticalreceiver sensitivity Precede -29dBm
The length of the optical link Max 20km



Ordering Information

 Model  Product Description
 RL804GS  GPON ONU 4GE+2POTS+11n 2*2 +11ac 2*2+USB, 4 x External Antennas 5DBI
