RL801GW

Key Benifits and Features

  • Support TR069,NAT,DMZ,DNS features
  •  Support Multiple ssid
  •  Support Multiple VLAN
  •  Support IPV6 ,PPPoE, DHCP and Static IP configuration for WAN Interface
  •  Support IP, MAC filtering, Firewall Functionality in routed mode

RicherLink RL801GW Router Overview

RL801GW terminal devices are designed for fulfilling FTTH and triple play service demand of Internet network operators or cable operators. The box is based on the mature PON technology, which have high ratio of performance to price, It support XPON features which can connect with GPON OLT or EPON OLT. and it support 802.11 n WiFi(2T2R) , Layer 2/3.It is highly reliable and easy to maintain, with guaranteed QoS for different service. And It is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.11ah.

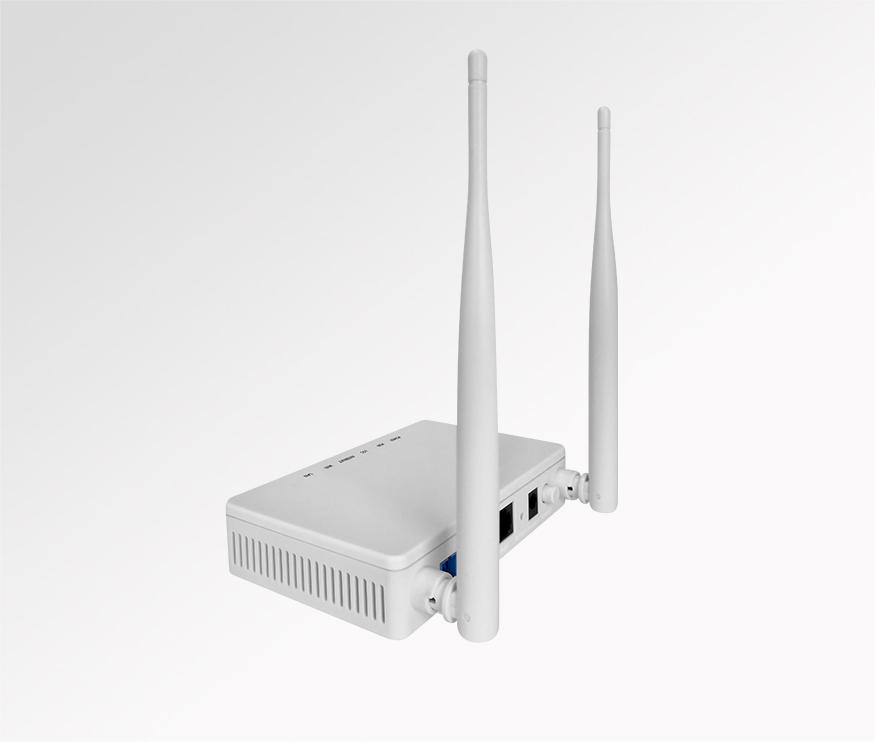

Figure 1: RicherLink RL801GW  Router

Description RL801GW equipment Interface

Port Type Function
PON port Connect PON port with internet by SC type, single mode optical fiber cable
LAN 1 port RJ45Port connects to local internet, 1 GE port automatically
Reset button (RST) Press down reset button and keep 1-5 seconds to make the device restart and recover from the factory default Settings.
PWR port (DC12 V) Connect with power adapter
Power turn on/off Power turn on/off

RL801GW LED statement

Indicators status Description
POWER Light on ONU power supply normally
Light off ONU no power supply
PON Light on ONU link active
Flash ONU manage to link
Light off ONU receiving power rate lower than optical receiver sensitivity
LOS Blink Device does not receive optical signals.
off Device has receivedoptical signal.
WIFI on WiFi turn on
off Device is power off or WiFi turn off
Blink WiFi turn on and with ongoing data transmission
INTERNET  on Internet is effective.
off Internet is ineffective.
ETH1 Light on network port linked, but no data transmitting
Flash network port data pass
Light off ONU no power supply or internet cable unlink

RL801GW specification and working environment

Parameter Nominal
Dimension 180mm×148mm×31mm(L×W×H)
Net weight 0.26kg
Typical power consumption <7W
Noise None
Cooling style Naturally cooling
Power supply 12V DC(By external AC/DC adapter)
Installation style Support PC, wall mount or put inside of information box.
Environment 0~45℃
Atmospheric pressure 70~106Kpa
MTBF 50,000hours
MTTR 30minutes
Parameter Nominal

RL801GW GPON Interface

Parameter Nominal
Connector style SC/PC
PON quantity 1
Fiber style Single mode
Wavelength TX:1310 +/-20nm
RX:1490 +/-10nm
PON interface standard ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
PON interface receiving rate 1.244Gpbs
PON interface transmitting rate 2.488Gpbs
Output optical power Min: 0dBm        Max: +5dBm
Opticalreceiver sensitivity Precede -28dBm
The length of the optical link Max 20km

RL801GW WIFI Specifications

Standard IEEE 802.11 b/g/n
WiFiparameter Frequency 2.4~2.4835GHz
Transmission speed 2.4GHz Frequency:
IEEE 802.11b :11/5.5/2/1M(Auto)
IEEE 802.11g:54/48/36/24/18/12/9/6(Auto)
IEEE 802.11n:270/243/216/162/108/81/54/27Mbps,up to300Mbps
Channel number 2.4GHz :13
Spread-spectrum Technique DSSS(Direct sequence spread spectrum)
Data Modulation DBPSK、DQPSK、CCK andOFDM(BPSK/QPSK/16-QAM/64-QAM)
Sensitivity@PER(Package error rate) 270M:-68dBm@10% PER;130M: -68dBm@10% PER;
108M:-68dBm@10% PER;54M:-68dBm@10% PER
11M:-85dBm@8% PER;6M:-88dBm@10% PER
1M:-90dBm@8% PER;
Transmission distance Indoor Maximum 120 meters;Outdoor Maximum 360 meters(The distance depends on the environment)
RF power 20dBm EIRP
Antenna 5dBi Antennas

Ordering Information

 Model  Product Description
RL801GW  GPON ONU 4GE+2POTS+11n 2*2 +11ac 2*2+USB, 4 x External Antennas 5DBI
