RL821GWV-D XPON ONU Router

Key Benifits and Features

  • ITUG.984 GPON compliant
  • Voice Protocol: SIP and H.248
  • Multiple Interfaces: 1GE, 1FE,1POTS,Dual-Band WIFI
  • High Performance with Dual-Band WiFi
  • Multiple Management Options
  • Compatible with Main OLT Vendor

RicherLink RL821GWV-D ONU GPON Overview

By introducing latest fiber GPON access technology, The RicherLink RL821GWV-D WIFI GPON ONU brings carrier class high-end networking solution for advanced triple play services. It compliant with ITU-T G.984 standard, dual-band wireless for combined connection speeds of up to 1200 Mbps(867 Mbps on 5GHz and 300 Mbps on 2.4 GHz) , Layer 2/3, and high quality VoIP as well, RL821GWV-D ONU GPON support the comprehensive triple-play services, including voice, video (IPTV or VoD), and high-speed internet access service.

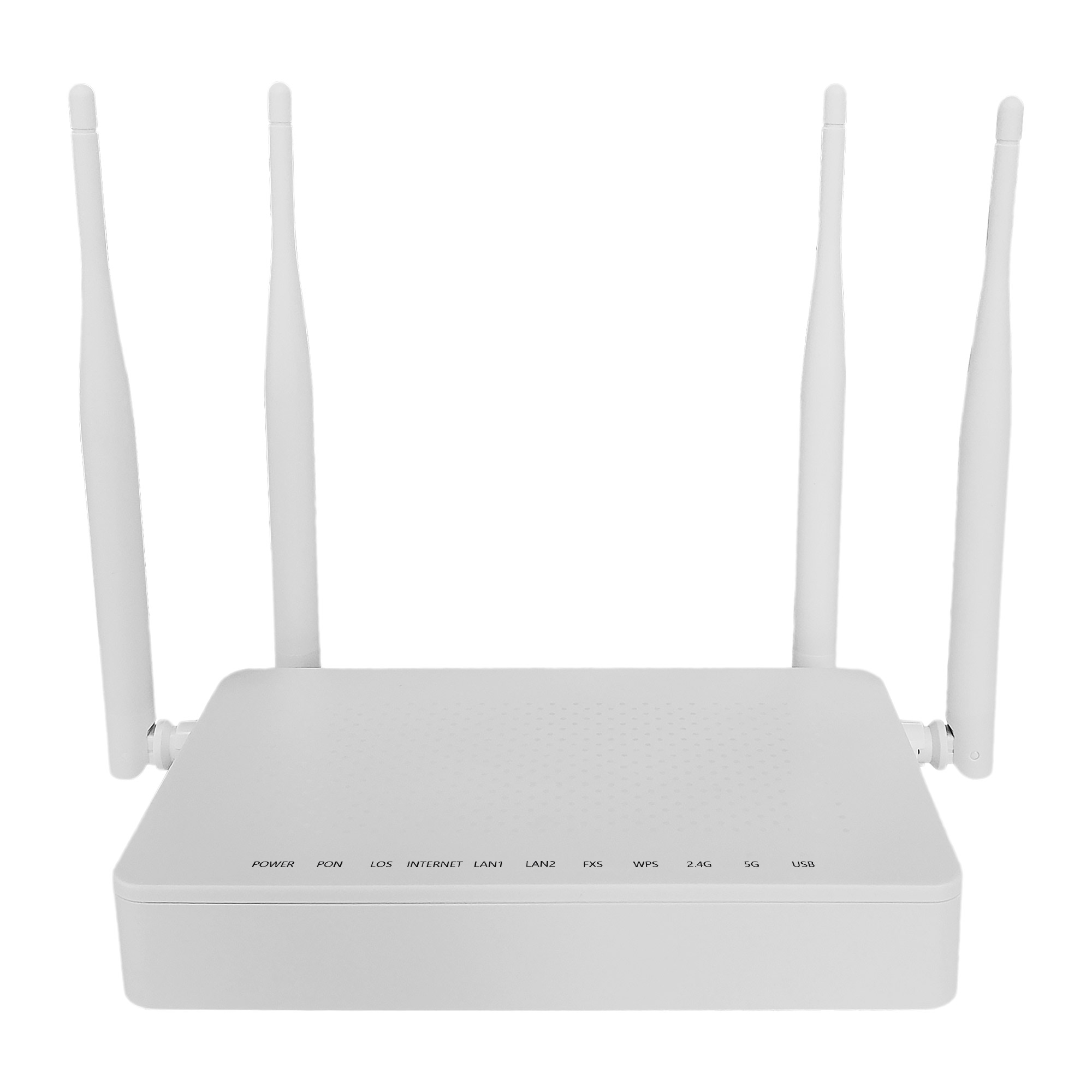

Figure 1: RicherLink RL821GWV-D ONU GPON

Product Specification

 Physical specifications

 GPON Interface
 Rate  Upsteam: 1.244Gbps Downsteam: 2.488Gbps
 Interface standard  ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
 Launch power  Min: 0dBm   Max: +5dBm
 Sensitivity  -27dBm
 Input Power Overload  -8dBm

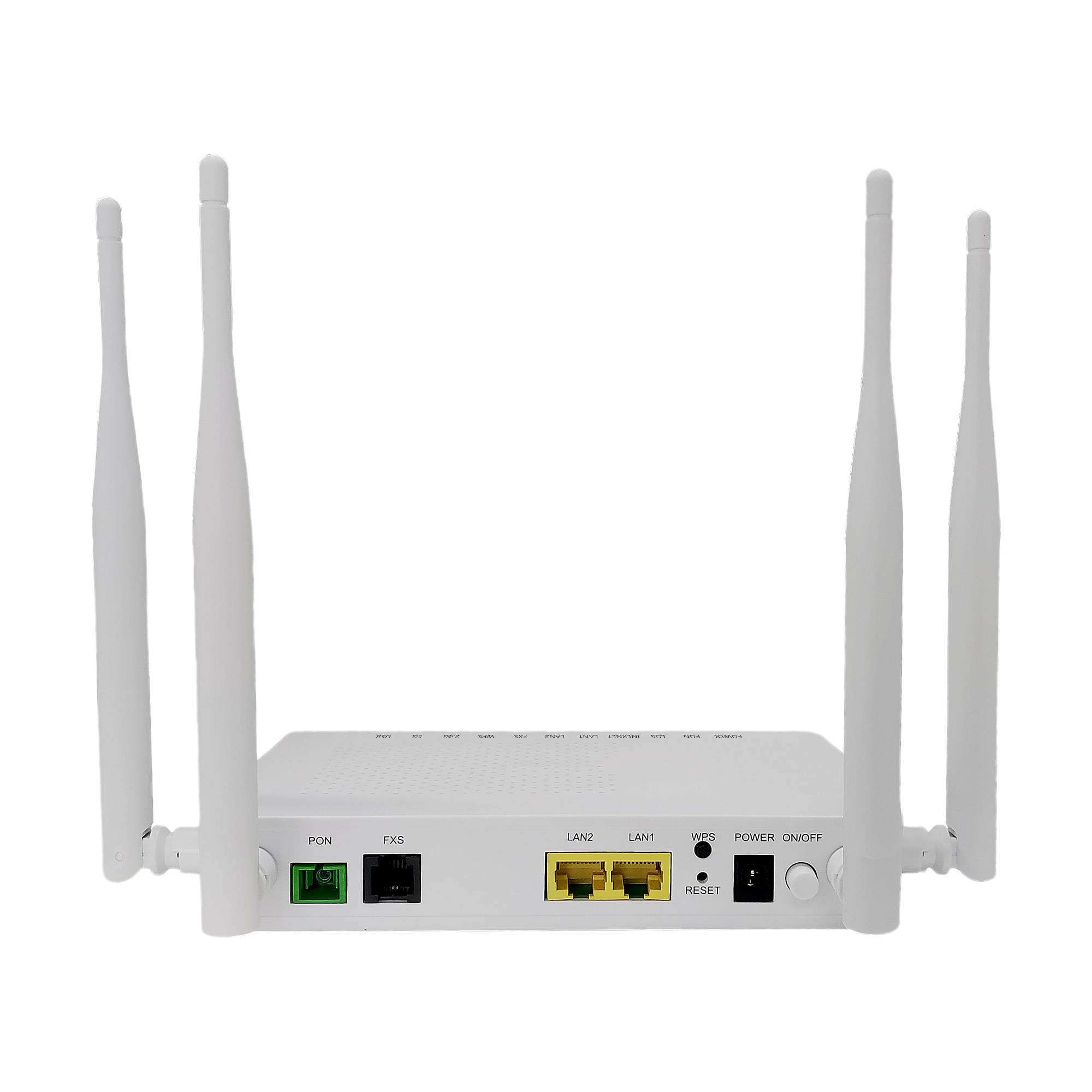

 Service Interface
 GPON Interface  1 GPON Port
 Data Interface  1 GE + 1FE
 POTS Interface  1 FXS Port
 WIFI Interface  IEEE 802.11 ac/n/g/b/a wireless LAN
 Antenna Type  4 external antennas
 Environmental conditions
 Storage  temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
 Operation  temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
 Power Supply and Consumption
 Power Adaptor  Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 1A
 Consumption  ≤10W
 Physical specifications
 Dimensions  236mm×210mm×31mm(L×W×H)
 Weight  0.26KG

 Key Feature Support on  RL821GWV-D

 Features  RL821GWV-D
 GPON Features  Compliant with ITU-T G.984 GPON standard
 FEC (Forward Error Correction) in both upstream and downstream
 QoS scheduling based on SP or WRR between GEM port and T-CONT
 Downstream multicast GEM port and broadcast GEM port
 Ethernet Feature  Support Auto-speed and MDI/MDIX auto detection
 Internal L2 switch
 Advanced data processing function,Such as VLAN label processing, flow classification
 Gateway Feature  WAN support Router and Bridge mode
 Router mode supports PPPoE/DHCP/ static IP
 WAN support Internet、VoIP、IPTV、TR069
 LAN supports DHCP and static IP
 Support NAT and NAPT
 VoIP Feature  Support SIP (RFC3261) or MEGACO v2 (H.248)
 Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-negotiate with call agent
 Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length
 WIFI Feature  867 Mbps on 5GHz and 300 Mbps on 2.4 GHz
 IEEE 802.11 ac/n/g/b/a wireless LAN
 2.4 GHz band: 2400 – 2483.5 MHz,5 GHz band: 5150 – 5725 MHz
 WEP、WPA-PSK、WPA2-PSK and other encryption
 OAM Feature  Standard OMCI (the embedded operations channel)compliant with ITU-T G.988
 Compliant with TR-069 standard
 Compliant with TR-098、TR-140 terminal integrated management interface
 Alarm reporting, performance monitoring

Ordering Information

 Model  Product Description
 RL821GWV-D  GPON ONU 1GE+1FE+1POTS+11n 2*2 +11ac 2*2, 4 x External Antennas 5DBI
